BT1-0224 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - BT1-0224 SKF
Category - Gearbox, Tapered roller bearings
Bearing Type - Suspension Tube Bearings
Bore Diameter (d) mm - 220.662
Outer Diameter (D) mm - 314.325
Total Width (T) mm - 61.912
Width of Inner Ring (B) mm - 66.675
Width of Outer Ring (C) mm - 49.212
Dynamic Load Rating (C) kN - 644
Static Load Rating (C0) kN - 1320
Limiting Speed (r/min) - 1800
Weight (kg) - 16.08
Limiting Value (e) - 0.33
Calculation Factor (Y) - 1.8
Calculation Factor (Y0) - 1

Designation Prefixes and Suffixes:

BT1 - Single Row Tapered Roller Bearing, Customized Design

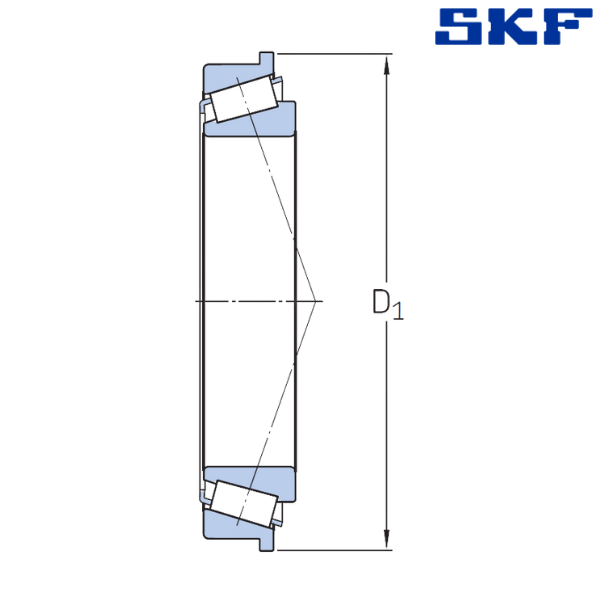

** Images are for representation purposes only
