BRI 82012 IKO

Brand - IKO
Item Number - BRI 82012 IKO
Also Known As - BRI82012

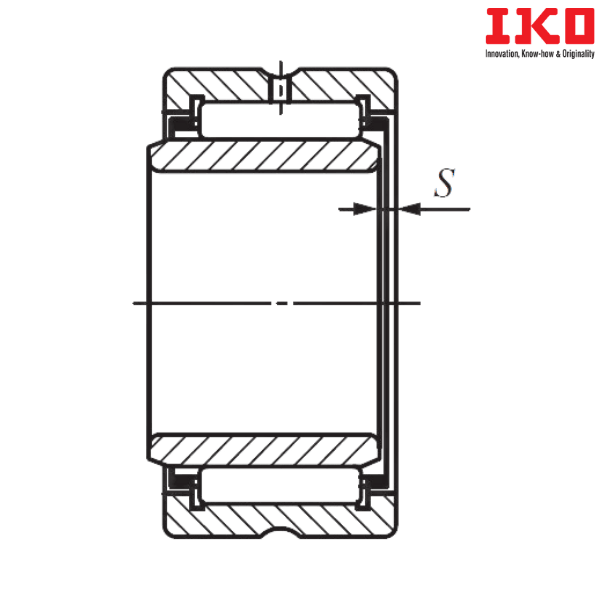

Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 12.7
Shaft Diameter (inch) - 0.5
Bore Diameter (d) mm - 12.7
Bore Diameter (d) inch - 0.5
Outer Diameter (D) mm - 31.75
Outer Diameter (D) inch - 1.25
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75
Boundary Dimension (B) mm - 19.3
Boundary Dimension (Fw) mm - 19.05
Boundary Dimension (Fw) inch - 0.75
Boundary Dimension (S) mm - 0.3

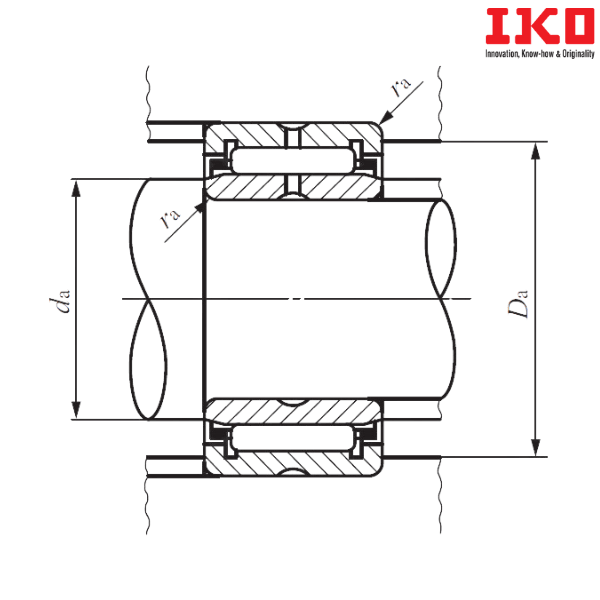

Minimum Standard Mounting Dimension (da) mm - 17.5
Maximum Standard Mounting Dimension (da) mm - 18
Maximum Standard Mounting Dimension (Da) mm - 26.5
Maximum Standard Mounting Dimension (ras) mm - 1
Basic Dynamic Load Rating (C) N - 21700
Basic Static Load Rating (C0) N - 24400
Allowable Rotational Speed (min-1) - 20000
Assembled Inner Ring - LRB 81212
Weight (kg) - 0.0795

** Images are for representation purposes only
