Description
Brand - IKO
Item Number - BRI 61816 UU IKO
Also Known As - BRI61816UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375
Bore Diameter (d) mm - 9.525
Bore Diameter (d) inch - 0.375
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.125
Boundary Dimension (C) mm - 25.4
Boundary Dimension (C) inch - 1
Boundary Dimension (B) mm - 25.65
Boundary Dimension (Fw) mm - 15.875
Boundary Dimension (Fw) inch - 0.625

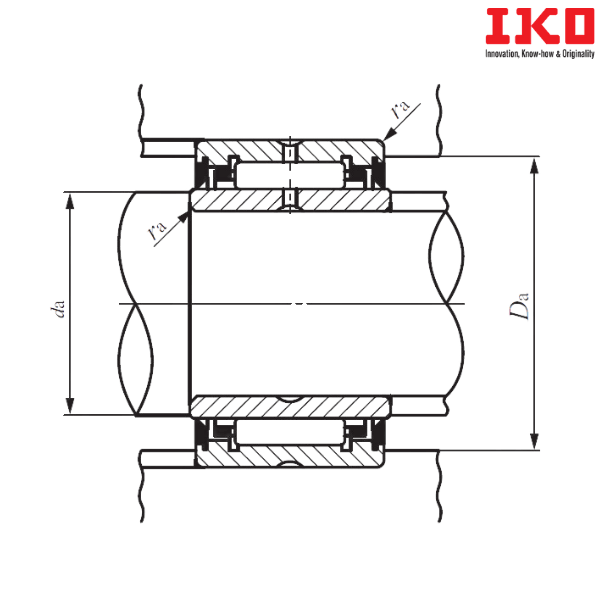

Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 14.5
Maximum Standard Mounting Dimension (Da) mm - 24.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 18300
Basic Static Load Rating (C0) N - 20000
Allowable Rotational Speed (min-1) - 12000
Assembled Inner Ring - LRBZ 61016 B
Weight (kg) - 0.079
** Images are for representation purposes only
