Description
Brand - IKO
Item Number - BRI 61812 IKO
Also Known As - BRI61812
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 9.525
Shaft Diameter (inch) - 0.375
Bore Diameter (d) mm - 9.525
Bore Diameter (d) inch - 0.375
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.125
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75
Boundary Dimension (B) mm - 19.3
Boundary Dimension (Fw) mm - 15.875
Boundary Dimension (Fw) inch - 0.625

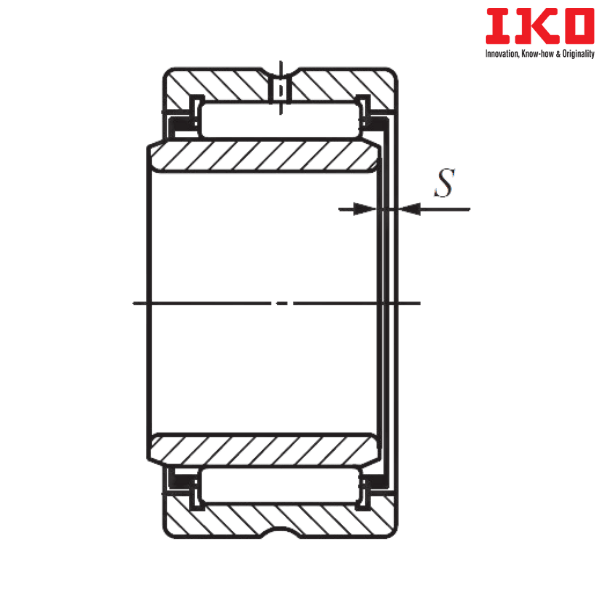

Boundary Dimension (S) mm - 0.3

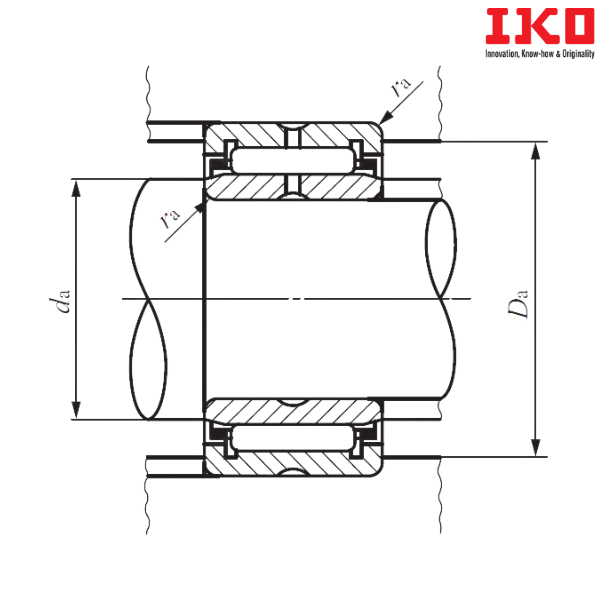

Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 14.5
Maximum Standard Mounting Dimension (Da) mm - 24.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 18900
Basic Static Load Rating (C0) N - 19700
Allowable Rotational Speed (min-1) - 25000
Assembled Inner Ring - LRB 61012
Weight (kg) - 0.0675
** Images are for representation purposes only
