BRI 568032 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BRI 568032 IKO
Also Known As - BRI568032
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 88.9
Shaft Diameter (inch) - 3.5
Bore Diameter (d) mm - 88.9
Bore Diameter (d) inch - 3.5
Outer Diameter (D) mm - 127
Outer Diameter (D) inch - 5
Boundary Dimension (C) mm - 50.8
Boundary Dimension (C) inch - 2
Boundary Dimension (B) mm - 51.05
Boundary Dimension (Fw) mm - 101.6
Boundary Dimension (Fw) inch - 4

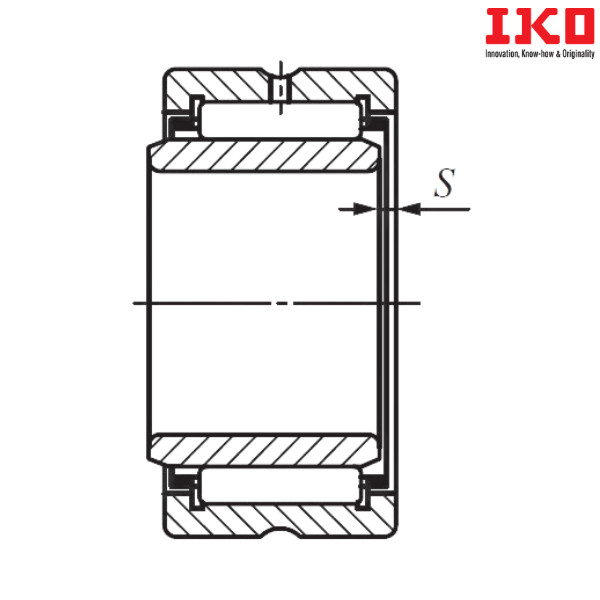

Boundary Dimension (S) mm - 3

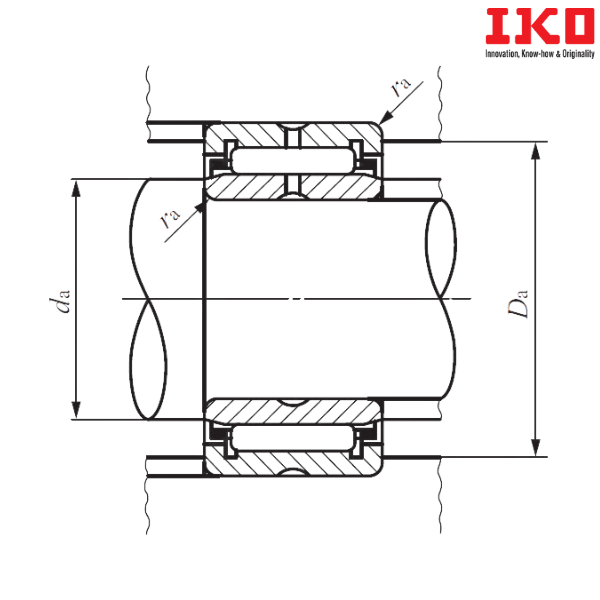

Minimum Standard Mounting Dimension (da) mm - 97
Maximum Standard Mounting Dimension (da) mm - 99
Maximum Standard Mounting Dimension (Da) mm - 117.8
Maximum Standard Mounting Dimension (ras) mm - 2.5
Basic Dynamic Load Rating (C) N - 176000
Basic Static Load Rating (C0) N - 368000
Allowable Rotational Speed (min-1) - 4000
Assembled Inner Ring - LRB 566432
Weight (kg) - 2.12

** Images are for representation purposes only
