BRI 527632 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BRI 527632 UU IKO
Also Known As - BRI527632UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 82.55
Shaft Diameter (inch) - 3.25
Bore Diameter (d) mm - 82.55
Bore Diameter (d) inch - 3.25
Outer Diameter (D) mm - 120.65
Outer Diameter (D) inch - 4.75
Boundary Dimension (C) mm - 50.8
Boundary Dimension (C) inch - 2
Boundary Dimension (B) mm - 51.05
Boundary Dimension (Fw) mm - 95.25
Boundary Dimension (Fw) inch - 3.75

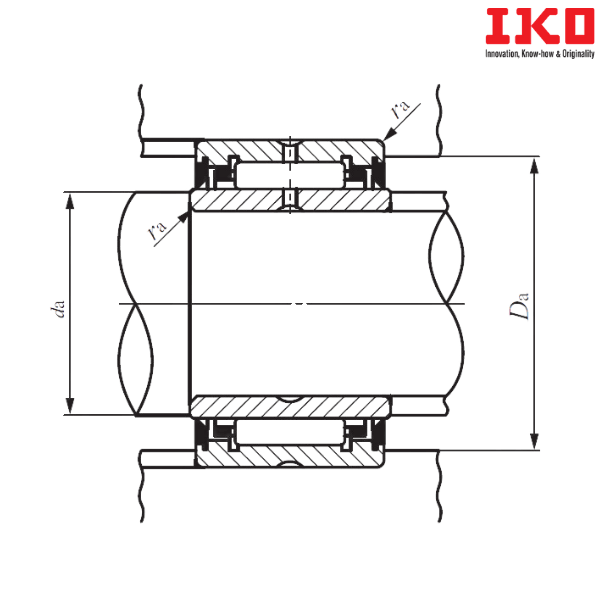

Minimum Standard Mounting Dimension (da) mm - 91
Maximum Standard Mounting Dimension (da) mm - 93
Maximum Standard Mounting Dimension (Da) mm - 111.4
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 148000
Basic Static Load Rating (C0) N - 287000
Allowable Rotational Speed (min-1) - 2000
Assembled Inner Ring - LRBZ 526032 B
Weight (kg) - 1.851

** Images are for representation purposes only
