BRI 406024 IKO

Brand - IKO
Item Number - BRI 406024 IKO
Also Known As - BRI406024
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 63.5
Shaft Diameter (inch) - 2.5
Bore Diameter (d) mm - 63.5
Bore Diameter (d) inch - 2.5
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Boundary Dimension (C) mm - 38.1
Boundary Dimension (C) inch - 1.5
Boundary Dimension (B) mm - 38.35
Boundary Dimension (Fw) mm - 76.2
Boundary Dimension (Fw) inch - 3

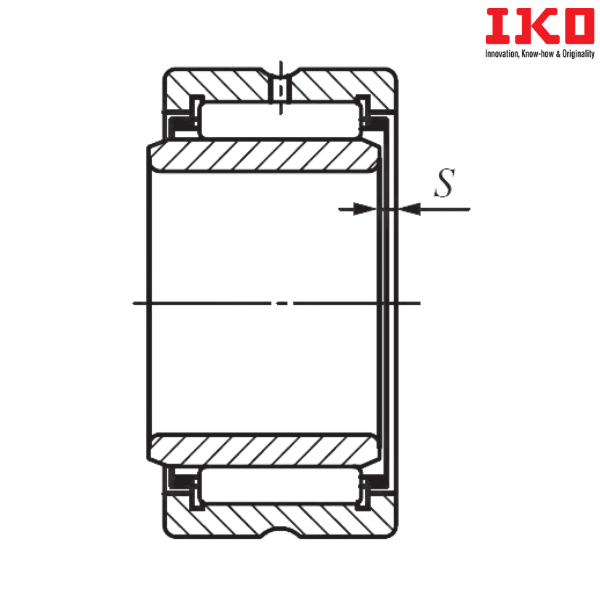

Boundary Dimension (S) mm - 1

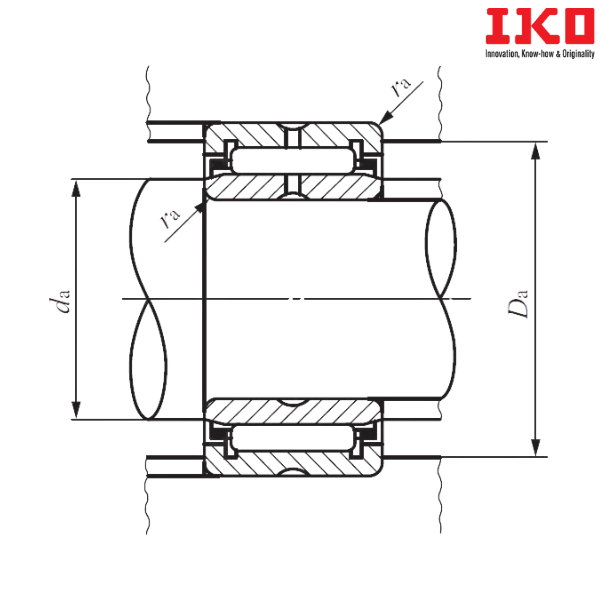

Minimum Standard Mounting Dimension (da) mm - 71
Maximum Standard Mounting Dimension (da) mm - 73
Maximum Standard Mounting Dimension (Da) mm - 87
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 105000
Basic Static Load Rating (C0) N - 211000
Allowable Rotational Speed (min-1) - 5500
Assembled Inner Ring - LRB 404824
Weight (kg) - 0.965

** Images are for representation purposes only
