BRI 365628 IKO

Brand - IKO
Item Number - BRI 365628 IKO
Also Known As - BRI365628
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 57.15
Shaft Diameter (inch) - 2.25
Bore Diameter (d) mm - 57.15
Bore Diameter (d) inch - 2.25
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Boundary Dimension (C) mm - 44.45
Boundary Dimension (C) inch - 1.75
Boundary Dimension (B) mm - 44.7
Boundary Dimension (Fw) mm - 69.85
Boundary Dimension (Fw) inch - 2.75

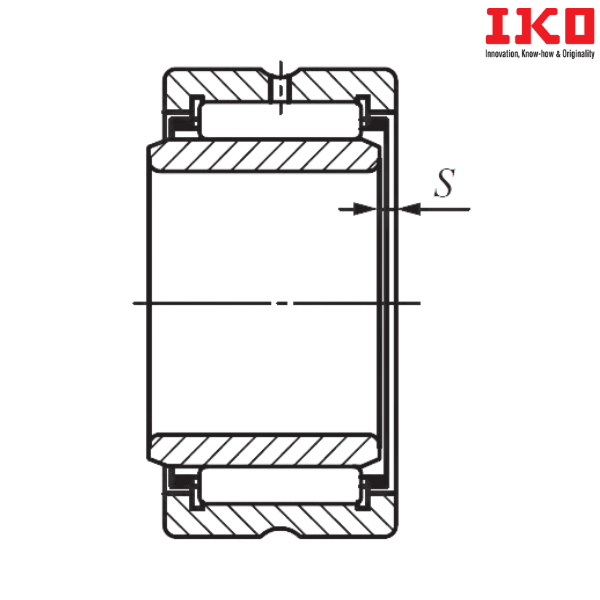

Boundary Dimension (S) mm - 1

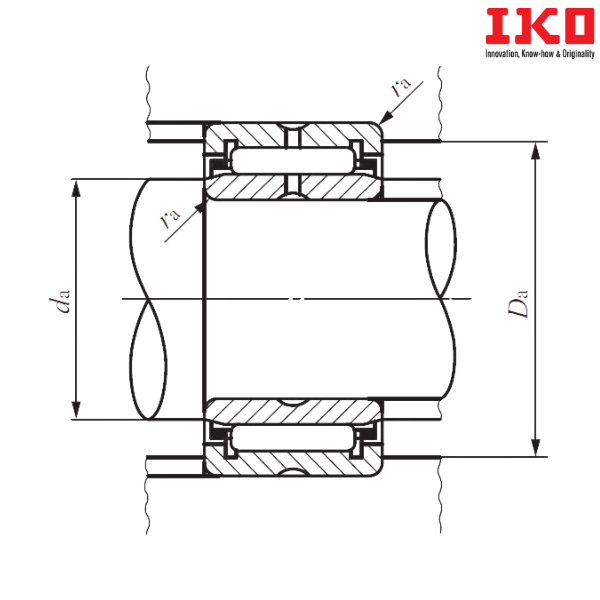

Minimum Standard Mounting Dimension (da) mm - 65
Maximum Standard Mounting Dimension (da) mm - 67
Maximum Standard Mounting Dimension (Da) mm - 80.7
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 114000
Basic Static Load Rating (C0) N - 228000
Allowable Rotational Speed (min-1) - 5500
Assembled Inner Ring - LRB 364428
Weight (kg) - 1.04

** Images are for representation purposes only
