BRI 325224 IKO

Brand - IKO
Item Number - BRI 325224 IKO
Also Known As - BRI325224
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 50.8
Shaft Diameter (inch) - 2
Bore Diameter (d) mm - 50.8
Bore Diameter (d) inch - 2
Outer Diameter (D) mm - 82.55
Outer Diameter (D) inch - 3.25
Boundary Dimension (C) mm - 38.1
Boundary Dimension (C) inch - 1.5
Boundary Dimension (B) mm - 38.35
Boundary Dimension (Fw) mm - 63.5
Boundary Dimension (Fw) inch - 2.5

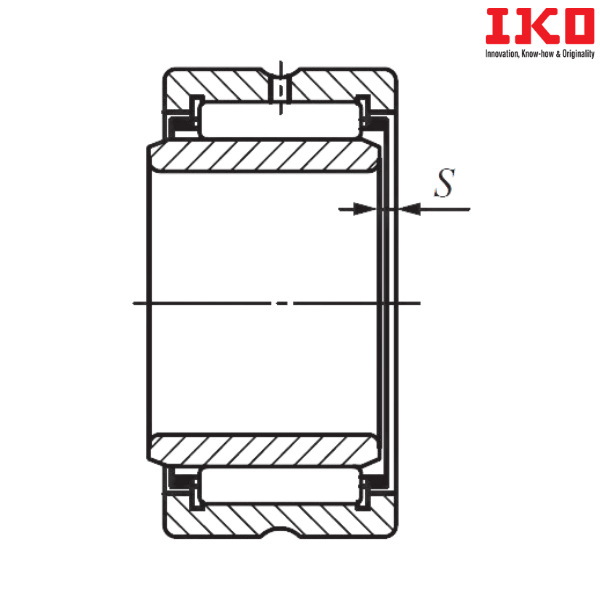

Boundary Dimension (S) mm - 1

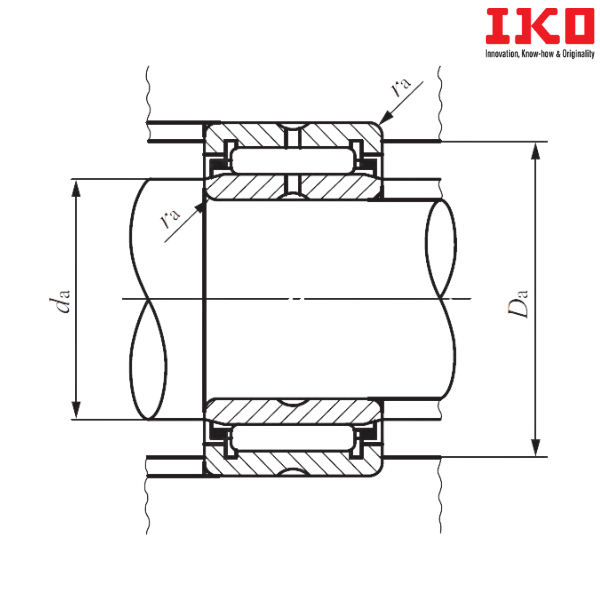

Minimum Standard Mounting Dimension (da) mm - 58
Maximum Standard Mounting Dimension (da) mm - 61
Maximum Standard Mounting Dimension (Da) mm - 74.3
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 94600
Basic Static Load Rating (C0) N - 174000
Allowable Rotational Speed (min-1) - 6500
Assembled Inner Ring - LRB 324024
Weight (kg) - 0.81

** Images are for representation purposes only
