BRI 284824 IKO

Brand - IKO
Item Number - BRI 284824 IKO
Also Known As - BRI284824
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 44.45
Shaft Diameter (inch) - 1.75
Bore Diameter (d) mm - 44.45
Bore Diameter (d) inch - 1.75
Outer Diameter (D) mm - 76.2
Outer Diameter (D) inch - 3

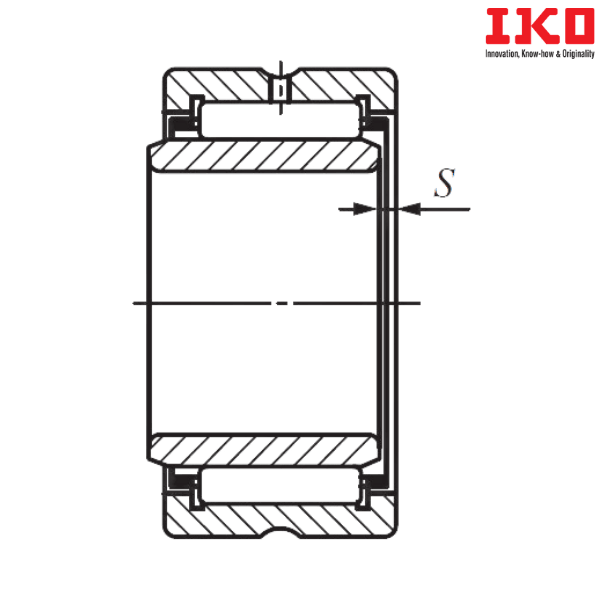

Boundary Dimension (C) mm - 38.1
Boundary Dimension (C) inch - 1.5
Boundary Dimension (B) mm - 38.35
Boundary Dimension (Fw) mm - 57.15
Boundary Dimension (Fw) inch - 2.25
Boundary Dimension (S) mm - 1

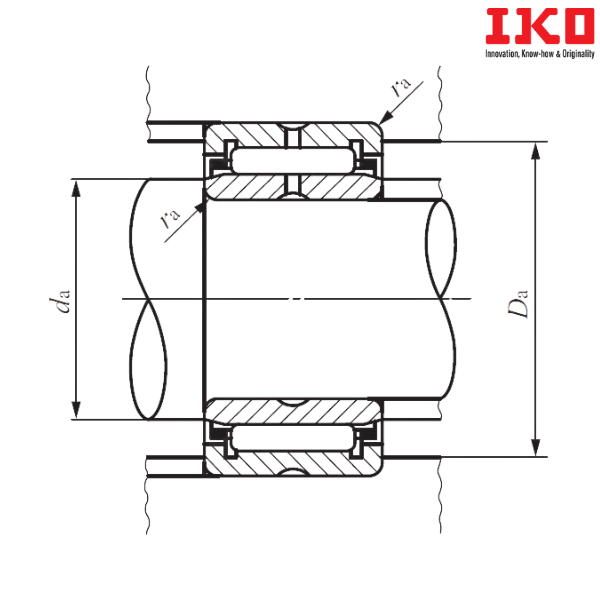

Minimum Standard Mounting Dimension (da) mm - 52.5
Maximum Standard Mounting Dimension (da) mm - 55
Maximum Standard Mounting Dimension (Da) mm - 69
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 90300
Basic Static Load Rating (C0) N - 158000
Allowable Rotational Speed (min-1) - 7000
Assembled Inner Ring - LRB 283624
Weight (kg) - 0.735

** Images are for representation purposes only
