BRI 264120 IKO

Brand - IKO
Item Number - BRI 264120 IKO
Also Known As - BRI264120
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 41.275
Shaft Diameter (inch) - 1.625
Bore Diameter (d) mm - 41.275
Bore Diameter (d) inch - 1.625
Outer Diameter (D) mm - 65.088
Outer Diameter (D) inch - 2.5625
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 50.8
Boundary Dimension (Fw) inch - 2

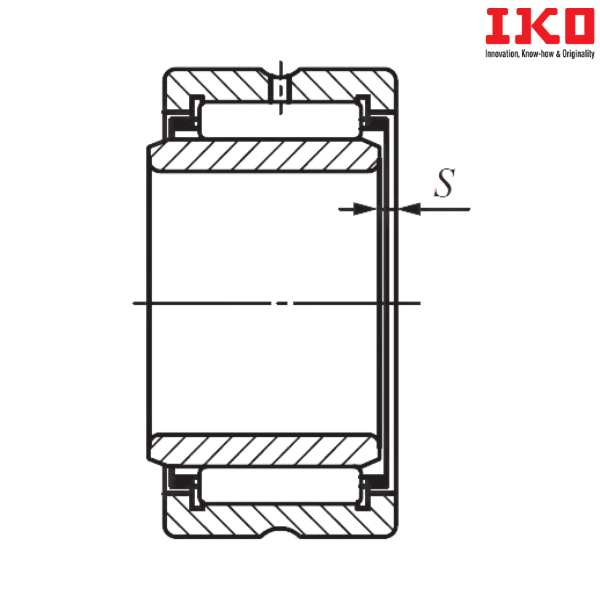

Boundary Dimension (S) mm - 0.5

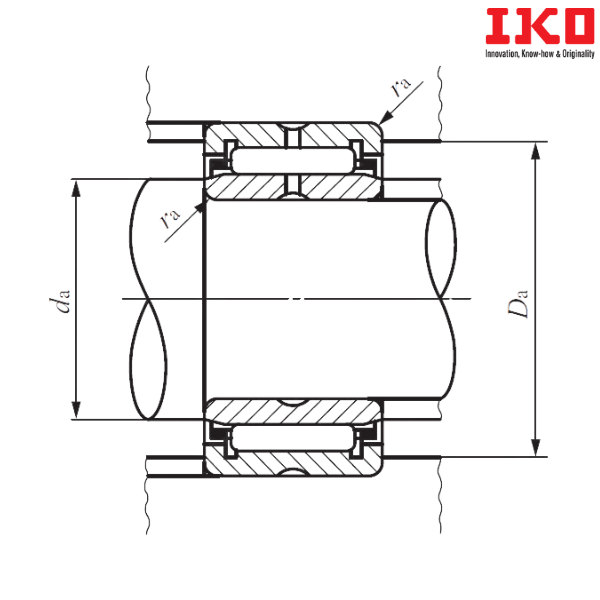

Minimum Standard Mounting Dimension (da) mm - 48
Maximum Standard Mounting Dimension (da) mm - 49
Maximum Standard Mounting Dimension (Da) mm - 57.8
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 63200
Basic Static Load Rating (C0) N - 118000
Allowable Rotational Speed (min-1) - 8000
Assembled Inner Ring - LRB 263220
Weight (kg) - 0.41

** Images are for representation purposes only
