Description
Brand - IKO
Item Number - BRI 243720 UU IKO
Also Known As - BRI243720UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5
Bore Diameter (d) mm - 38.1
Bore Diameter (d) inch - 1.5
Outer Diameter (D) mm - 58.738
Outer Diameter (D) inch - 2.3125
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 44.45
Boundary Dimension (Fw) inch - 1.75

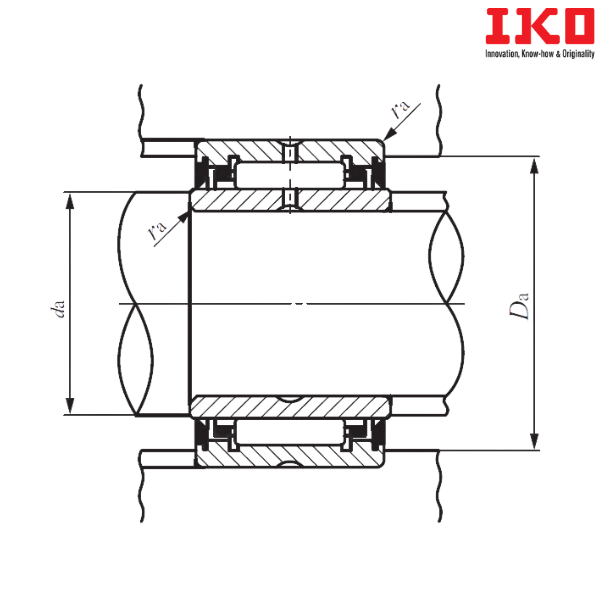

Minimum Standard Mounting Dimension (da) mm - 43.3
Maximum Standard Mounting Dimension (da) mm - 43.4
Maximum Standard Mounting Dimension (Da) mm - 51.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 47500
Basic Static Load Rating (C0) N - 78200
Allowable Rotational Speed (min-1) - 4500
Assembled Inner Ring - LRBZ 242820 B
Weight (kg) - 0.293
** Images are for representation purposes only
