Description
Brand - IKO
Item Number - BRI 223520 UU IKO
Also Known As - BRI223520UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 34.925
Shaft Diameter (inch) - 1.375
Bore Diameter (d) mm - 34.925
Bore Diameter (d) inch - 1.375
Outer Diameter (D) mm - 55.562
Outer Diameter (D) inch - 2.1875
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 41.275
Boundary Dimension (Fw) inch - 1.625

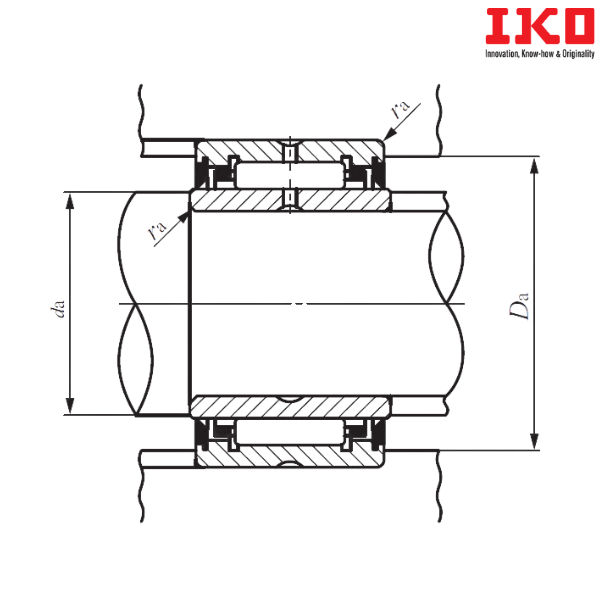

Minimum Standard Mounting Dimension (da) mm - 40.2
Maximum Standard Mounting Dimension (da) mm - 40.2
Maximum Standard Mounting Dimension (Da) mm - 48.3
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 44800
Basic Static Load Rating (C0) N - 70900
Allowable Rotational Speed (min-1) - 4500
Assembled Inner Ring - LRBZ 222620 B
Weight (kg) - 0.275
** Images are for representation purposes only
