BRI 223516 IKO


Download Datasheet
Country Of Origin: JAPAN

Description

Brand - IKO
Item Number - BRI 223516 IKO
Also Known As - BRI223516
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 34.925
Shaft Diameter (inch) - 1.375
Bore Diameter (d) mm - 34.925
Bore Diameter (d) inch - 1.375
Outer Diameter (D) mm - 55.562
Outer Diameter (D) inch - 2.1875
Boundary Dimension (C) mm - 25.4
Boundary Dimension (C) inch - 1
Boundary Dimension (B) mm - 25.65
Boundary Dimension (Fw) mm - 41.275
Boundary Dimension (Fw) inch - 1.625

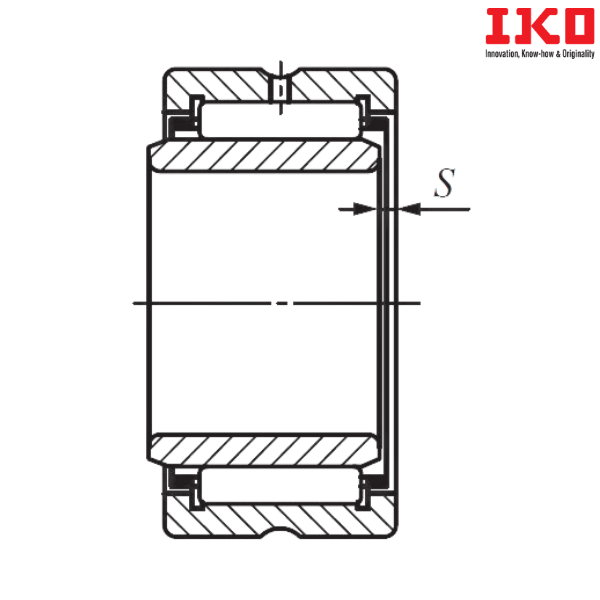

Boundary Dimension (S) mm - 0.5

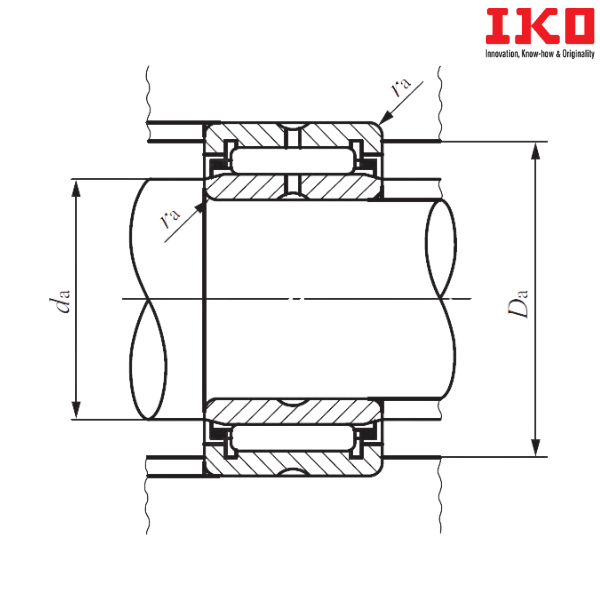

Minimum Standard Mounting Dimension (da) mm - 40.2
Maximum Standard Mounting Dimension (da) mm - 40.2
Maximum Standard Mounting Dimension (Da) mm - 48.3
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 44800
Basic Static Load Rating (C0) N - 70900
Allowable Rotational Speed (min-1) - 9500
Assembled Inner Ring - LRB 222616
Weight (kg) - 0.235

** Images are for representation purposes only
