Description
Brand - IKO
Item Number - BRI 183020 UU IKO
Also Known As - BRI183020UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 28.575
Shaft Diameter (inch) - 1.125
Bore Diameter (d) mm - 28.575
Bore Diameter (d) inch - 1.125
Outer Diameter (D) mm - 47.625
Outer Diameter (D) inch - 1.875
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 34.925
Boundary Dimension (Fw) inch - 1.375

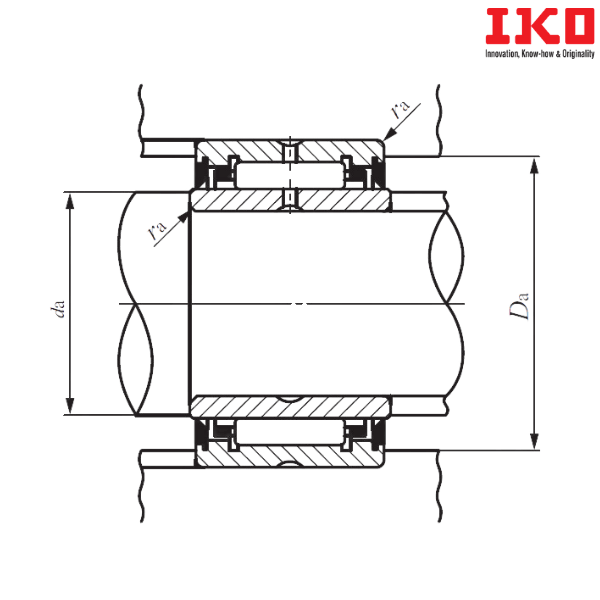

Minimum Standard Mounting Dimension (da) mm - 33.5
Maximum Standard Mounting Dimension (da) mm - 33.9
Maximum Standard Mounting Dimension (Da) mm - 42.4
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 38500
Basic Static Load Rating (C0) N - 60000
Allowable Rotational Speed (min-1) - 5500
Assembled Inner Ring - LRBZ 182220 B
Weight (kg) - 0.211
** Images are for representation purposes only
