Description
Brand - IKO
Item Number - BRI 162820 UU IKO
Also Known As - BRI162820UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 25.4
Shaft Diameter (inch) - 1
Bore Diameter (d) mm - 25.4
Bore Diameter (d) inch - 1
Outer Diameter (D) mm - 44.45
Outer Diameter (D) inch - 1.75
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 31.75
Boundary Dimension (Fw) inch - 1.25

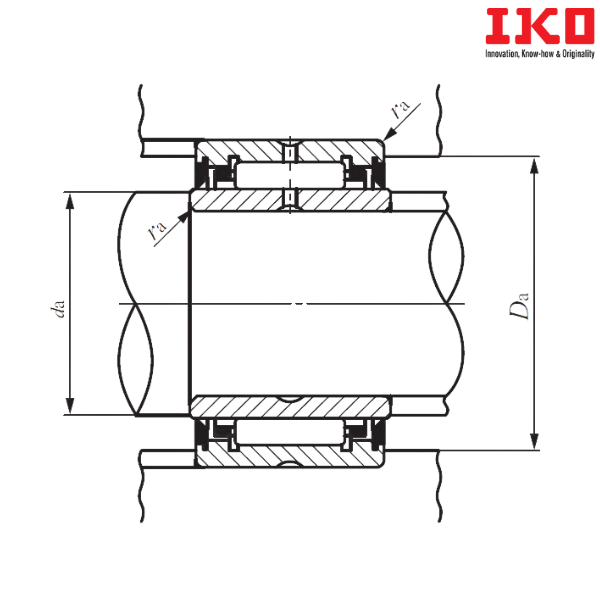

Minimum Standard Mounting Dimension (da) mm - 30.5
Maximum Standard Mounting Dimension (da) mm - 30.7
Maximum Standard Mounting Dimension (Da) mm - 39.2
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 36000
Basic Static Load Rating (C0) N - 53500
Allowable Rotational Speed (min-1) - 6500
Assembled Inner Ring - LRBZ 162020 B
Weight (kg) - 0.196
** Images are for representation purposes only
