Description
Brand - IKO
Item Number - BRI 142620 UU IKO
Also Known As - BRI142620UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 22.225
Shaft Diameter (inch) - 0.875
Bore Diameter (d) mm - 22.225
Bore Diameter (d) inch - 0.875
Outer Diameter (D) mm - 41.275
Outer Diameter (D) inch - 1.625
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25
Boundary Dimension (B) mm - 32
Boundary Dimension (Fw) mm - 28.575
Boundary Dimension (Fw) inch - 1.125

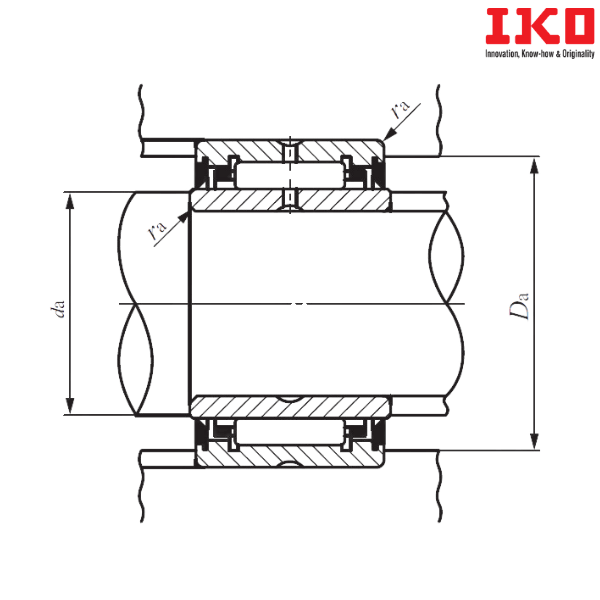

Minimum Standard Mounting Dimension (da) mm - 27
Maximum Standard Mounting Dimension (da) mm - 27.5
Maximum Standard Mounting Dimension (Da) mm - 36
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 34900
Basic Static Load Rating (C0) N - 49900
Allowable Rotational Speed (min-1) - 7000
Assembled Inner Ring - LRBZ 141820 B
Weight (kg) - 0.177
