BRI 122412 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BRI 122412 IKO
Also Known As - BRI122412
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 19.05
Shaft Diameter (inch) - 0.75
Bore Diameter (d) mm - 19.05
Bore Diameter (d) inch - 0.75
Outer Diameter (D) mm - 38.1
Outer Diameter (D) inch - 1.5
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75
Boundary Dimension (B) mm - 19.3
Boundary Dimension (Fw) mm - 25.4
Boundary Dimension (Fw) inch - 1

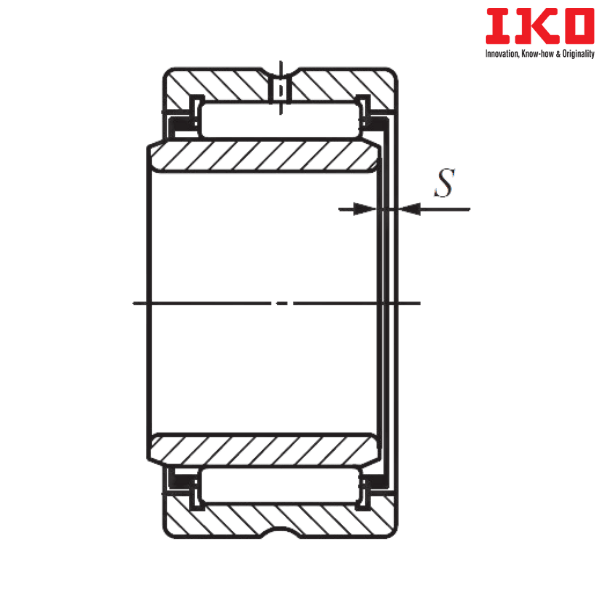

Boundary Dimension (S) mm - 0.3

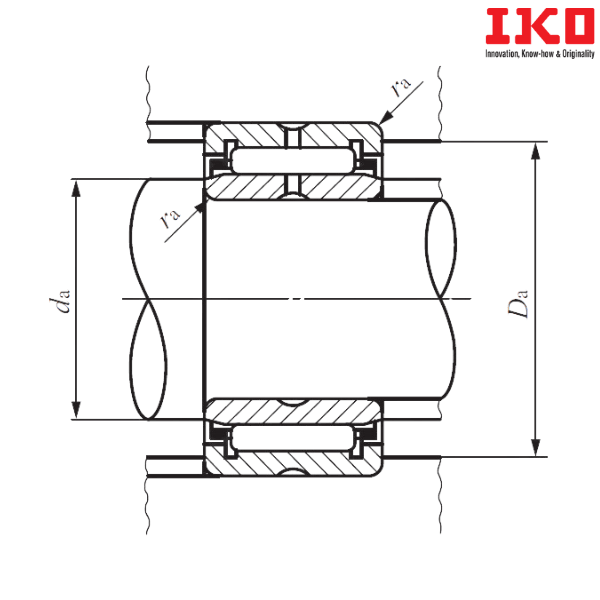

Minimum Standard Mounting Dimension (da) mm - 24
Maximum Standard Mounting Dimension (da) mm - 24.4
Maximum Standard Mounting Dimension (Da) mm - 32.9
Maximum Standard Mounting Dimension (ras) mm - 1
Basic Dynamic Load Rating (C) N - 25300
Basic Static Load Rating (C0) N - 31900
Allowable Rotational Speed (min-1) - 16000
Assembled Inner Ring - LRB 121612
Weight (kg) - 0.102

** Images are for representation purposes only
