BRI 102216 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BRI 102216 UU IKO
Also Known As - BRI102216UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring, Inch Series
Shaft Diameter (mm) - 15.875
Shaft Diameter (inch) - 0.625
Bore Diameter (d) mm - 15.875
Bore Diameter (d) inch - 0.625
Outer Diameter (D) mm - 34.925
Outer Diameter (D) inch - 1.375
Boundary Dimension (C) mm - 25.4
Boundary Dimension (C) inch - 1
Boundary Dimension (B) mm - 25.65
Boundary Dimension (Fw) mm - 22.225
Boundary Dimension (Fw) inch - 0.875

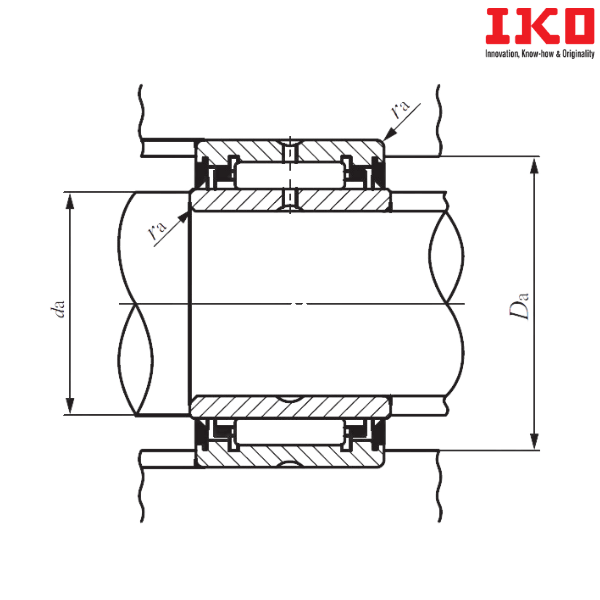

Minimum Standard Mounting Dimension (da) mm - 21
Maximum Standard Mounting Dimension (da) mm - 21.2
Maximum Standard Mounting Dimension (Da) mm - 29.7
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 21600
Basic Static Load Rating (C0) N - 26900
Allowable Rotational Speed (min-1) - 9000
Assembled Inner Ring - LRBZ 101416 B
Weight (kg) - 0.1135

** Images are for representation purposes only
