Description
Brand - IKO
Item Number - BRI 102212 IKO
Also Known As - BRI102212
Category - Machined Type Needle Roller Bearing with Inner Ring, Inch Series
Shaft Diameter (mm) - 15.875
Shaft Diameter (inch) - 0.625
Bore Diameter (d) mm - 15.875
Bore Diameter (d) inch - 0.625
Outer Diameter (D) mm - 34.925
Outer Diameter (D) inch - 1.375
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75
Boundary Dimension (B) mm - 19.3
Boundary Dimension (Fw) mm - 22.225
Boundary Dimension (Fw) inch - 0.875

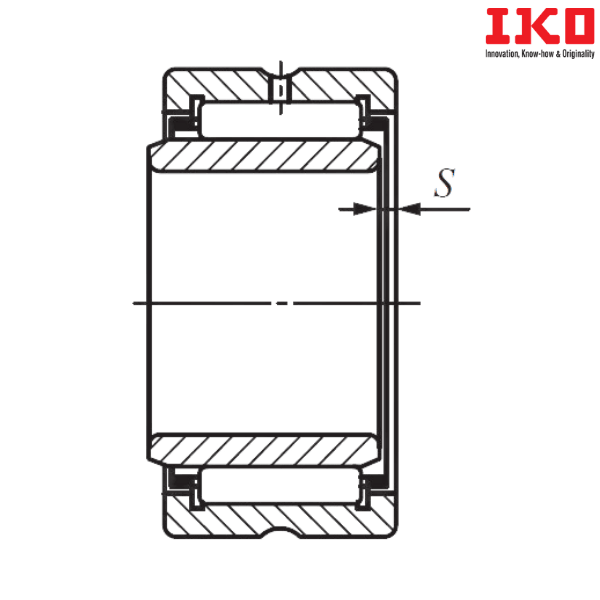

Boundary Dimension (S) mm - 0.3

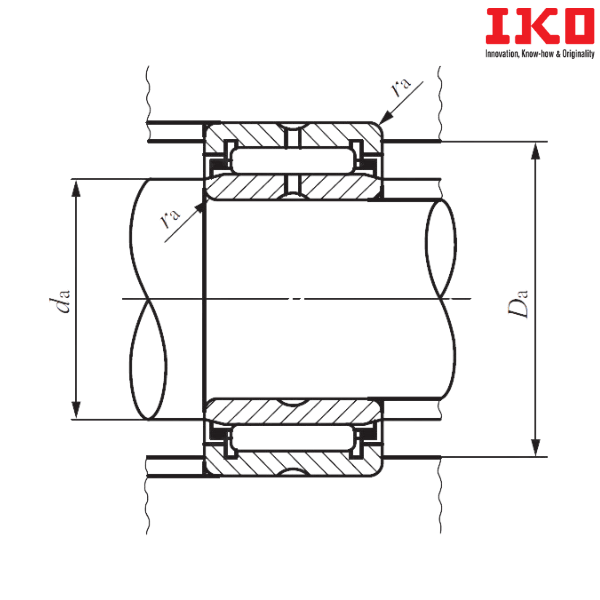

Minimum Standard Mounting Dimension (da) mm - 21
Maximum Standard Mounting Dimension (da) mm - 21.2
Maximum Standard Mounting Dimension (Da) mm - 29.7
Maximum Standard Mounting Dimension (ras) mm - 1
Basic Dynamic Load Rating (C) N - 23000
Basic Static Load Rating (C0) N - 27100
Allowable Rotational Speed (min-1) - 18000
Assembled Inner Ring - LRB 101412
Weight (kg) - 0.091
** Images are for representation purposes only
