BR 607632 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 607632 UU IKO
Also Known As - BR607632UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 95.25
Shaft Diameter (inch) - 3.75
Boundary Dimension (Fw) mm - 95.25
Boundary Dimension (Fw) inch - 3.75
Outer Diameter (D) mm - 120.65
Outer Diameter (D) inch - 4.75
Boundary Dimension (C) mm - 50.8
Boundary Dimension (C) inch - 2

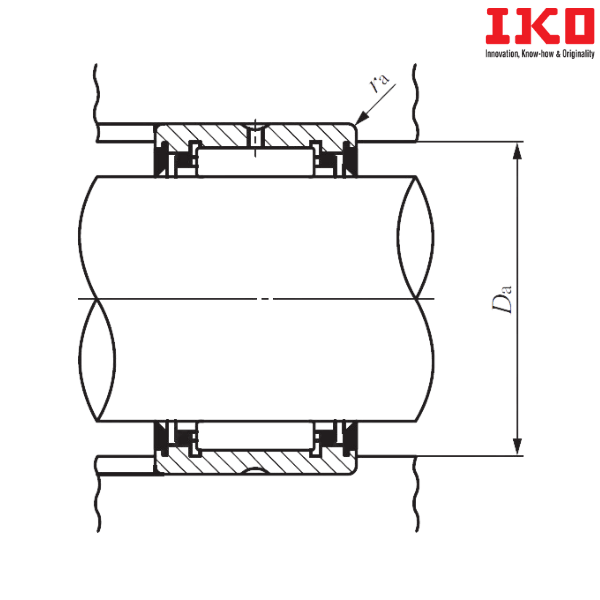

Maximum Standard Mounting Dimension (Da) mm - 111.4
Maximum Standard Mounting Dimension (ras) mm - 2.5
Basic Dynamic Load Rating (C) N - 148000
Basic Static Load Rating (C0) N - 287000
Allowable Rotational Speed (min-1) - 2000
Weight (kg) - 1.161

** Images are for representation purposes only
