Description
Brand - IKO
Item Number - BR 526832 IKO
Also Known As - BR526832
Category - Machined Type Needle Roller Bearing without Inner Ring, Inch Series
Shaft Diameter (mm) - 82.55
Shaft Diameter (inch) - 3.25
Boundary Dimension (Fw) mm - 82.55
Boundary Dimension (Fw) inch - 3.25
Outer Diameter (D) mm - 107.95
Outer Diameter (D) inch - 4.25
Boundary Dimension (C) mm - 50.8
Boundary Dimension (C) inch - 2

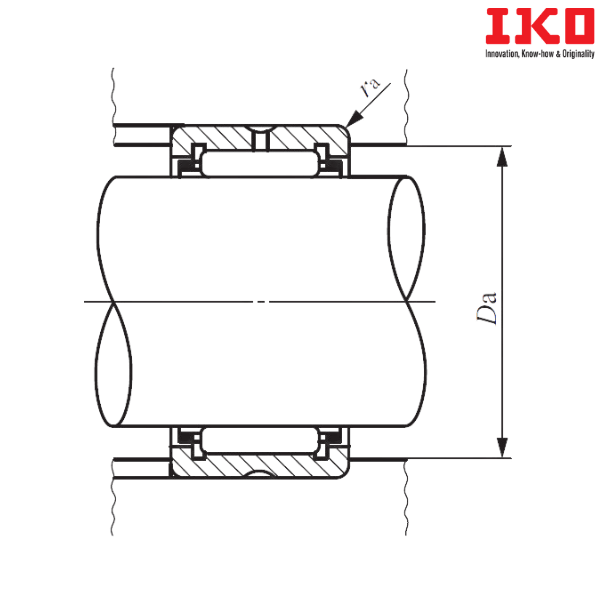

Maximum Standard Mounting Dimension (Da) mm - 99.7
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 154000
Basic Static Load Rating (C0) N - 290000
Allowable Rotational Speed (min-1) - 5000
Weight (kg) - 1.14
** Images are for representation purposes only
