BR 486028 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 486028 IKO
Also Known As - BR486028
Category - Machined Type Needle Roller Bearing without Inner Ring, Inch Series
Shaft Diameter (mm) - 76.2
Shaft Diameter (inch) - 3
Boundary Dimension (Fw) mm - 76.2
Boundary Dimension (Fw) inch - 3
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Boundary Dimension (C) mm - 44.45
Boundary Dimension (C) inch - 1.75

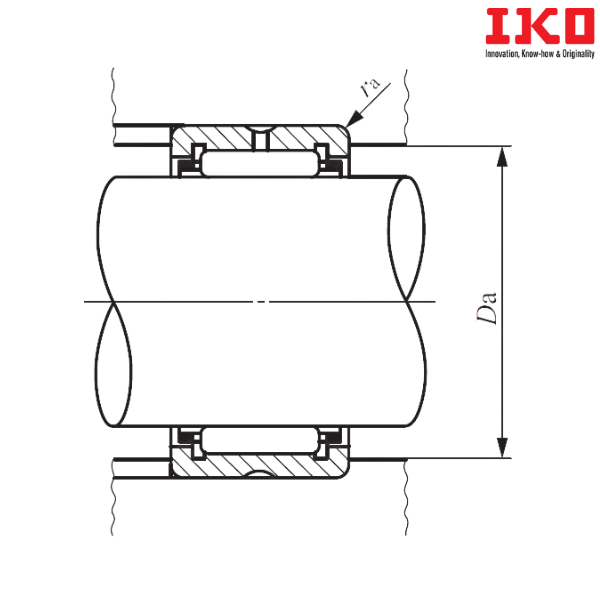

Maximum Standard Mounting Dimension (Da) mm - 87
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 122000
Basic Static Load Rating (C0) N - 255000
Allowable Rotational Speed (min-1) - 5500
Weight (kg) - 0.65

** Images are for representation purposes only
