BR 445628 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 445628 UU IKO
Also Known As - BR445628UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 69.85
Shaft Diameter (inch) - 2.75
Boundary Dimension (Fw) mm - 69.85
Boundary Dimension (Fw) inch - 2.75
Outer Diameter (D) mm - 88.9003
Outer Diameter (D) inch - 0.5
Boundary Dimension (C) mm - 44.45
Boundary Dimension (C) inch - 1.75

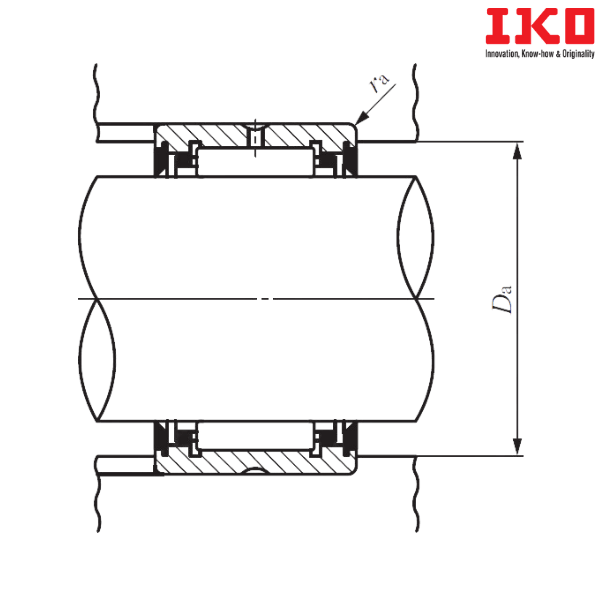

Maximum Standard Mounting Dimension (Da) mm - 80.7
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 98700
Basic Static Load Rating (C0) N - 189000
Allowable Rotational Speed (min-1) - 2500
Weight (kg) - 0.54

** Images are for representation purposes only
