BR 445628 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 445628 IKO
Also Known As - BR445628
Category - Machined Type Needle Roller Bearing without Inner Ring, Inch Series
Shaft Diameter (mm) - 69.85
Shaft Diameter (inch) - 2.75
Boundary Dimension (Fw) mm - 69.85
Boundary Dimension (Fw) inch - 2.75
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Boundary Dimension (C) mm - 44.45
Boundary Dimension (C) inch - 1.75

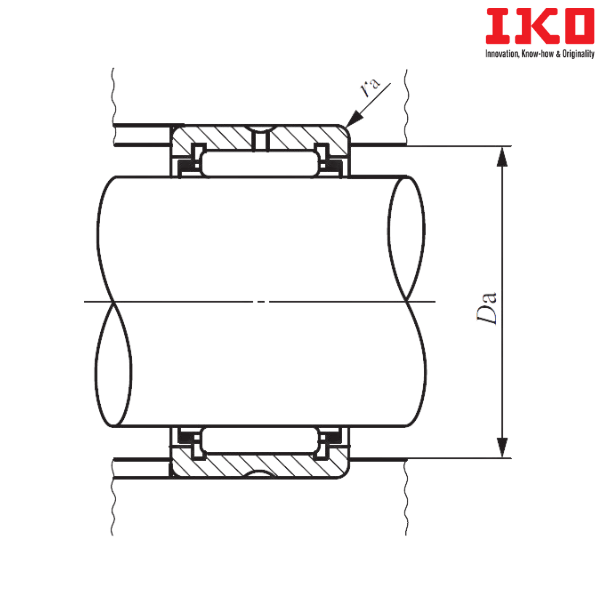

Maximum Standard Mounting Dimension (Da) mm - 80.7
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 114000
Basic Static Load Rating (C0) N - 228000
Allowable Rotational Speed (min-1) - 5500
Weight (kg) - 0.6

** Images are for representation purposes only
