BR 405228 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 405228 UU IKO
Also Known As - BR405228UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 63.5
Shaft Diameter (inch) - 2.5
Boundary Dimension (Fw) mm - 63.5
Boundary Dimension (Fw) inch - 2.5
Outer Diameter (D) mm - 82.55
Outer Diameter (D) inch - 3.25
Boundary Dimension (C) mm - 44.45
Boundary Dimension (C) inch - 1.75

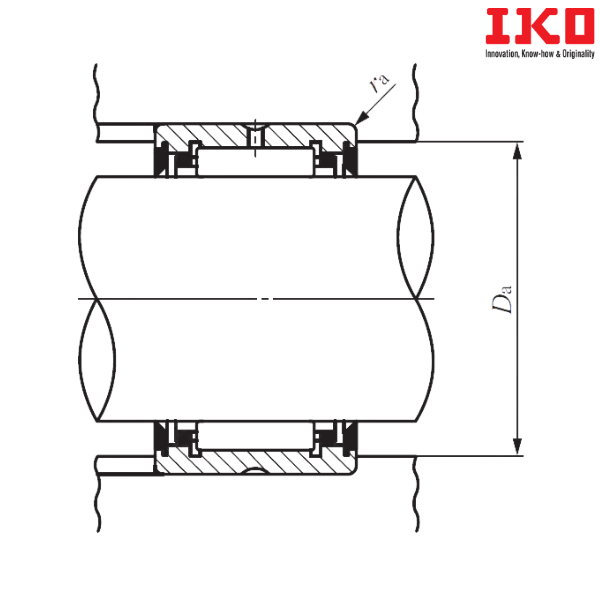

Maximum Standard Mounting Dimension (Da) mm - 74.3
Maximum Standard Mounting Dimension (ras) mm - 2
Basic Dynamic Load Rating (C) N - 94600
Basic Static Load Rating (C0) N - 174000
Allowable Rotational Speed (min-1) - 3000
Weight (kg) - 0.499

** Images are for representation purposes only
