BR 324120 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 324120 UU IKO
Also Known As - BR324120UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 50.8
Shaft Diameter (inch) - 2
Boundary Dimension (Fw) mm - 50.8
Boundary Dimension (Fw) inch - 2
Outer Diameter (D) mm - 65.088
Outer Diameter (D) inch - 2.5625
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25

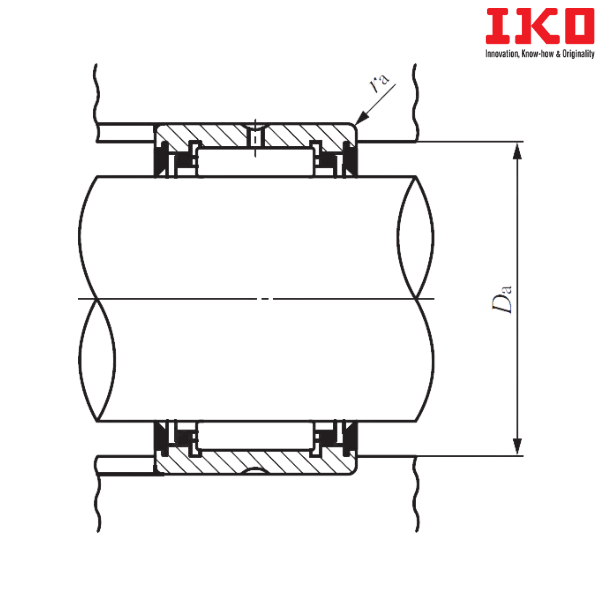

Maximum Standard Mounting Dimension (Da) mm - 57.8
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 51000
Basic Static Load Rating (C0) N - 89400
Allowable Rotational Speed (min-1) - 4000
Weight (kg) - 0.216

** Images are for representation purposes only
