BR 263520 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 263520 UU IKO
Also Known As - BR263520UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 41.275
Shaft Diameter (inch) - 1.625
Boundary Dimension (Fw) mm - 41.275
Boundary Dimension (Fw) inch - 1.625
Outer Diameter (D) mm - 55.562
Outer Diameter (D) inch - 2.1875
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25

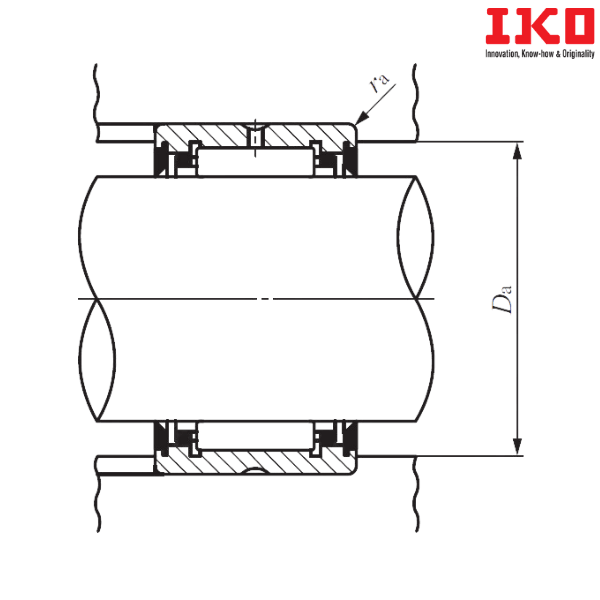

Maximum Standard Mounting Dimension (Da) mm - 48.3
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 44800
Basic Static Load Rating (C0) N - 70900
Allowable Rotational Speed (min-1) - 4500
Weight (kg) - 0.179

** Images are for representation purposes only
