BR 243320 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 243320 UU IKO
Also Known As - BR243320UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 38.1
Shaft Diameter (inch) - 1.5
Boundary Dimension (Fw) mm - 38.1
Boundary Dimension (Fw) inch - 1.5
Outer Diameter (D) mm - 52.388
Outer Diameter (D) inch - 2.0625
Boundary Dimension (C) mm - 31.75
Boundary Dimension (C) inch - 1.25

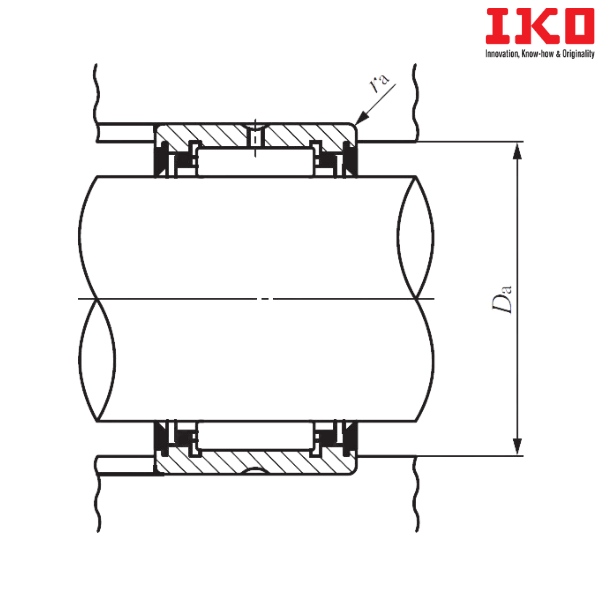

Maximum Standard Mounting Dimension (Da) mm - 45.1
Maximum Standard Mounting Dimension (ras) mm - 1.5
Basic Dynamic Load Rating (C) N - 43700
Basic Static Load Rating (C0) N - 66900
Allowable Rotational Speed (min-1) - 5500
Weight (kg) - 0.168

** Images are for representation purposes only
