BR 162416 UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 162416 UU IKO
Also Known As - BR162416UU
Category - Machined Type Needle Roller Bearing with Seal without Inner Ring, Inch Series
Shaft Diameter (mm) - 25.4
Shaft Diameter (inch) - 1
Boundary Dimension (Fw) mm - 25.4
Boundary Dimension (Fw) inch - 1
Outer Diameter (D) mm - 38.1
Outer Diameter (D) inch - 1.5
Boundary Dimension (C) mm - 25.4
Boundary Dimension (C) inch - 1

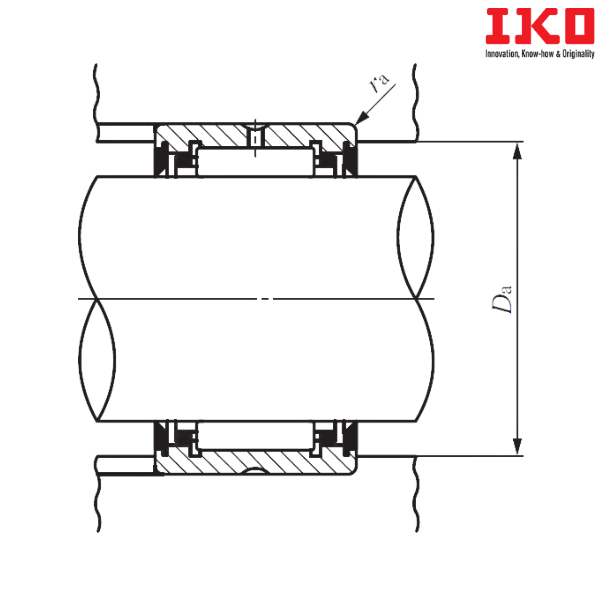

Maximum Standard Mounting Dimension (Da) mm - 32.9
Maximum Standard Mounting Dimension (ras) mm - 1
Basic Dynamic Load Rating (C) N - 23600
Basic Static Load Rating (C0) N - 31300
Allowable Rotational Speed (min-1) - 8000
Weight (kg) - 0.083

** Images are for representation purposes only
