BR 101812 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - BR 101812 IKO
Also Known As - BR101812
Category - Machined Type Needle Roller Bearing without Inner Ring, Inch Series
Shaft Diameter (mm) - 15.875
Shaft Diameter (inch) - 0.625
Boundary Dimension (Fw) mm - 15.875
Boundary Dimension (Fw) inch - 0.625
Outer Diameter (D) mm - 28.575
Outer Diameter (D) inch - 1.125
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75

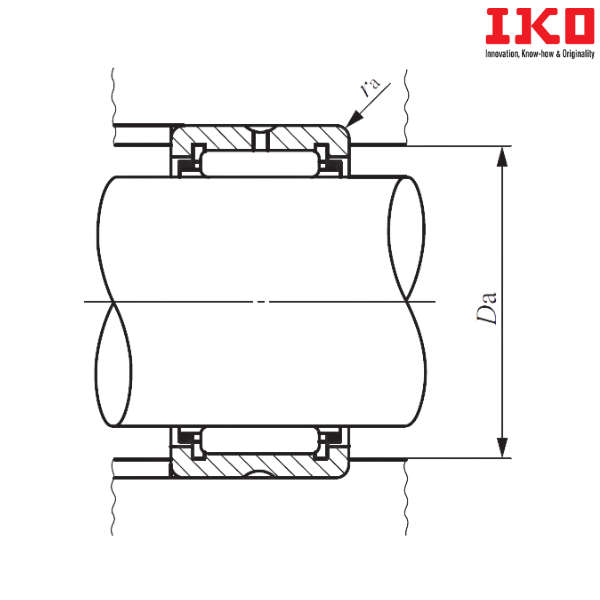

Maximum Standard Mounting Dimension (Da) mm - 24.5
Maximum Standard Mounting Dimension (ras) mm - 0.6
Basic Dynamic Load Rating (C) N - 18900
Basic Static Load Rating (C0) N - 19700
Allowable Rotational Speed (min-1) - 25000
Weight (kg) - 0.049

** Images are for representation purposes only
