Description
Brand - ASKUBAL
Item Number - BPF204 ASKUBAL
Also known as - PF20RM RAY20-XL UBPF204 YAT204 + PF47
Category - Housing unit
Inner (d) MM - 20
Outer (D) MM - 91
Width (B) MM - 25.5
Inner (d) Inch - 0.7874
Outer (D) Inch - 3.5827
Width (B) Inch - 1.0039
Weight (kg) - 0.32
Seal - 2F - Standard Seal for Y-bearings
Lubrication - Standard Lubrication

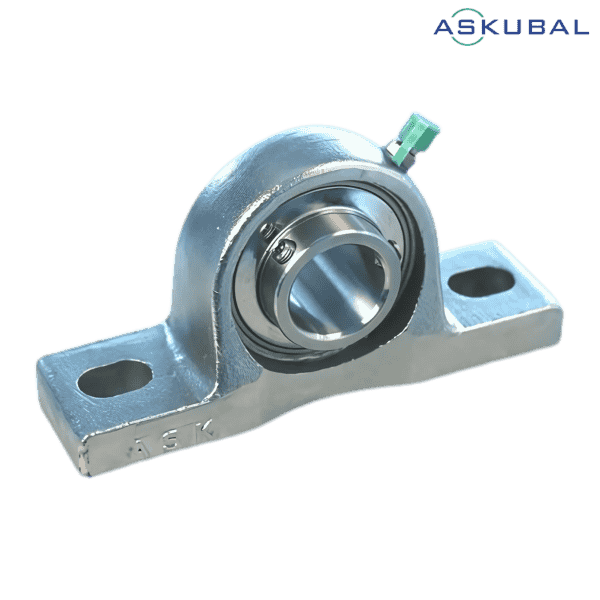

** Image is for representation purposes only
