Description

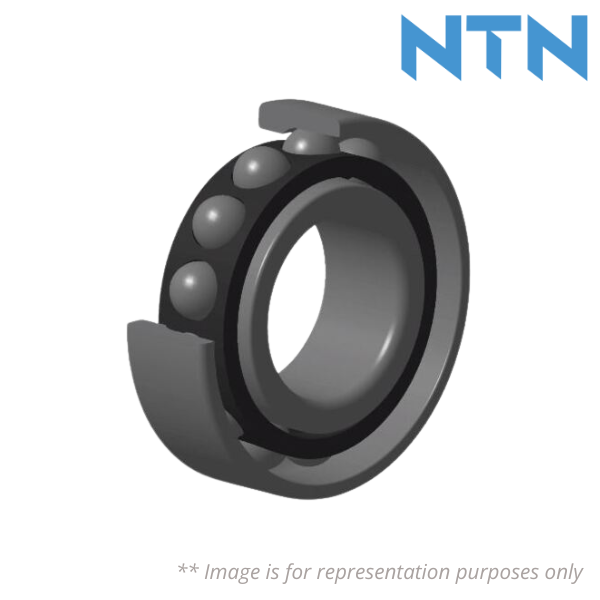

Brand - NTN
Item Number - BNT004GN P4 NTN
Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 20
Outer (D) MM - 42
Width (B) MM - 12
Weight (kg) - 0.057
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 30 degrees
Pairing - No pairing
Axial Internal Clearance / Preload - No Preload
Lubrication - Standard Lubrication
