Description
Brand - NTN
Item Number - BNT003GN P4 NTN

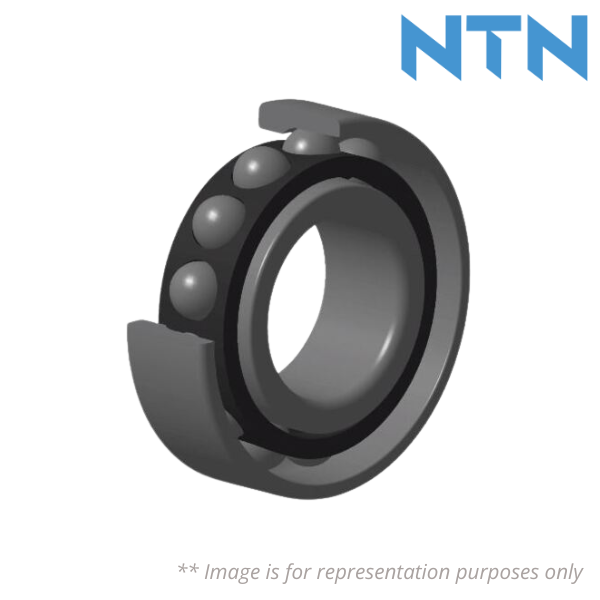

Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 17
Outer (D) MM - 35
Width (B) MM - 10
Weight (kg) - 0.033
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 30 degrees
Pairing - No pairing
Axial Internal Clearance / Preload - No Preload
Lubrication - Standard Lubrication
