Description
Brand - RINGSPANN
Part Number - BM 45 SX RINGSPANN
Category - Complete Freewheels BM

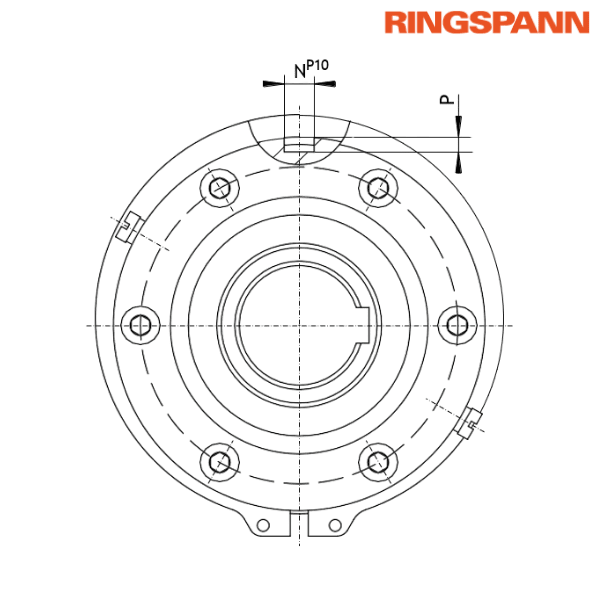

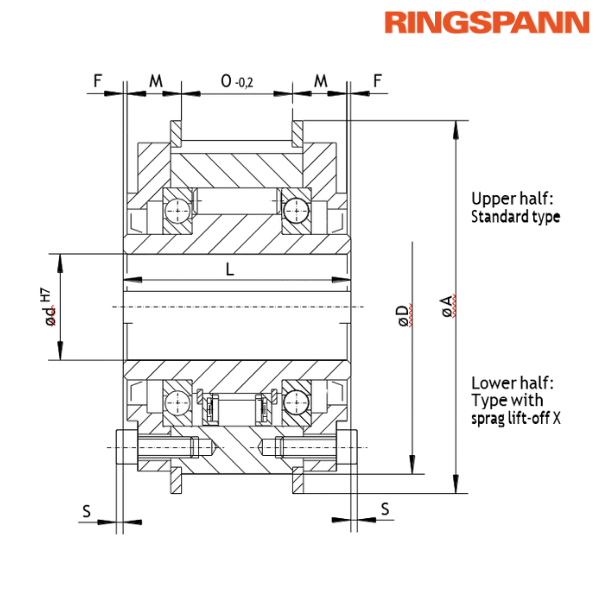

Principal Dimensions & Specifications (Metric):
Standard Bore Diameter (d) - 70 mm
Maximum Bore Diameter (d) - 70 mm
Dimension (A) - 218 mm
Dimension (D) - 195 mm
Dimension (F) - 1.25
Dimension (L) - 130 mm
Dimension (M) - 24.75 mm
Dimension (N) - 20 mm
Dimension (O) - 78 mm
Dimension (P) - 7.5 mm
Dimension (S) - 8.5 mm
Weight - 22.4 kg
Type - Type with Sprag Lift-off X For Extended Service Life Using Sprag Lift-off at High Speed Rotating Inner Ring (SX)
Nominal Torque (MN) - 2300 Nm
Sprag Lift-off at Inner Ring Speed - 400 RPM
Maximum Speed of Inner Ring Freewheels/ Overruns - 1500 RPM
Maximum Speed of Outer Ring Drives - 160 RPM
Description of Suffix:
SX - Type with Sprag Lift-off X For Extended Service Life Using Sprag Lift-off at High Speed Rotating Inner Ring
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified nominal torque
• Tolerance of keyway width JS10
• Keyway according to DIN 6885
Features:

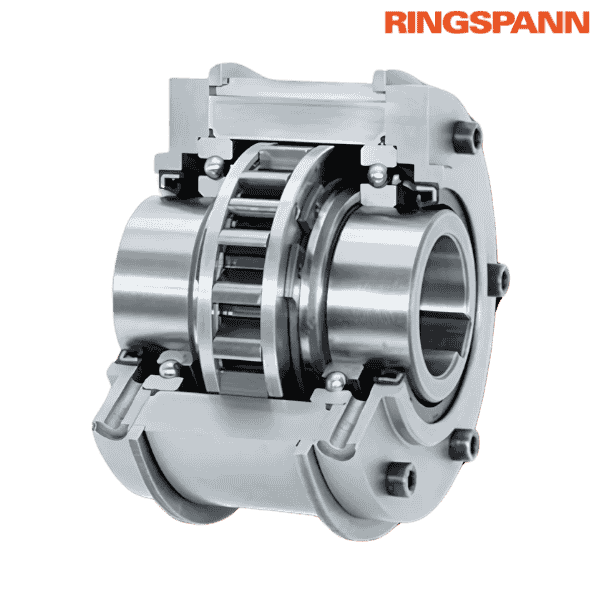

• Complete Freewheels BM are sealed freewheels equipped with ball bearings
• In addition to the standard version, a variant with sprag lift-off (type X) is offered for wear-free freewheeling when the inner ring rotates at high speed
• Designed to handle nominal torques up to 57,500 Nm
• Available with bores up to 150 mm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Application Example:
• Complete Freewheel BM 60 SX is used as a backstop, positioned at the end of the intermediate shaft of a spur gearbox
• The freewheel operates without radial seal rings and is lubricated by the gearbox oil
• A radial holding pin engages with the outer ring’s keyway
Mounting:
• The shaft tolerance must conform to ISO h6 or j6
• The pilot diameter D of the attachment part must comply with ISO H7 or J7
♦ ♦ Images are for representation purposes only
