Description
Brand - ZEN
Item Number - BK4020 ZEN
Category - Needle Roller Bearing
Inner Ring Dimension (d) mm - 40
Outer Ring Dimension (D) mm - 47
Width (B) mm - 20
Bt (mm) - 17.3
Dynamic Load Rating (N) - 25500
Static Load Rating (N) - 52000
Limiting Speed - 6400
Weight (kg) - 0.062
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100

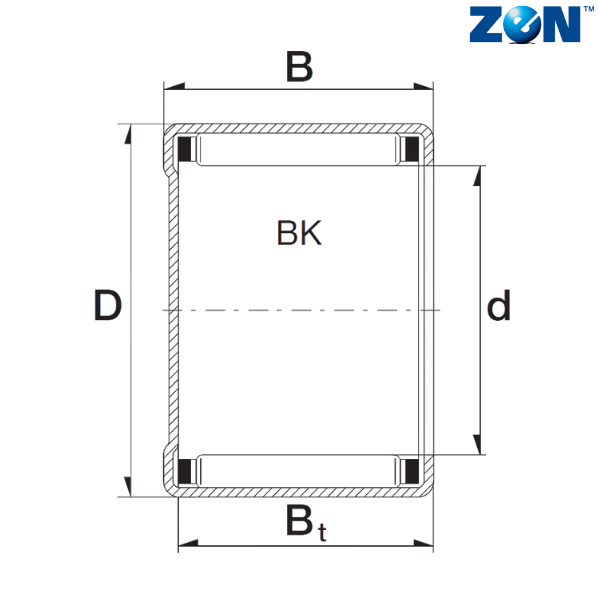

** Images are for representation purposes only
