Description
Brand - NADELLA
Item Number - BK3520 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

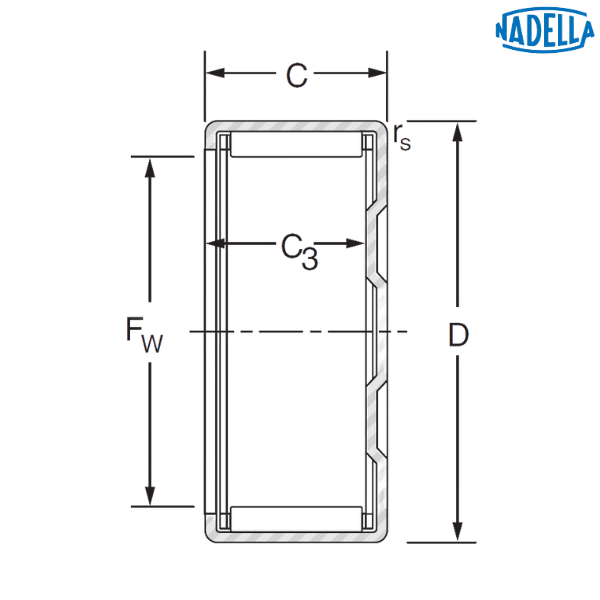

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Outer Dimeter (D) - 42 mm
Width (C) - 20 mm
Diameter of the Inner Raceway (Fw) - 35 mm
Minimum Width (C3) - 17.3 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 24.5 kN
Static Load Rating (C0) - 46.8 kN
Speed Limit with Grease - 5900 rpm
Speed Limit with Oil - 9100 rpm
Weight - 0.065 kg
Compatible Internal Ring - JR30x35x20.5
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
