Description
Brand - ZEN
Item Number - BK3026 ZEN
Category - Needle Roller Bearing

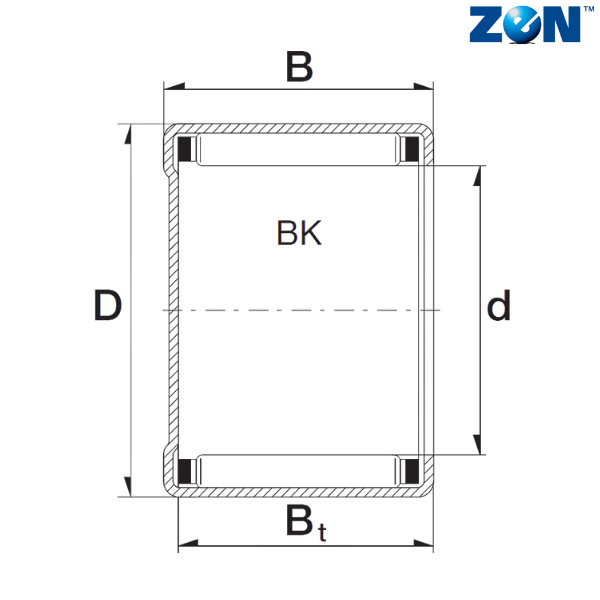

Inner Ring Dimension (d) mm - 30
Outer Ring Dimension (D) mm - 37
Width (B) mm - 26
Bt (mm) - 23.3
Dynamic Load Rating (N) - 28000
Static Load Rating (N) - 54000
Limiting Speed - 8400
Weight (kg) - 0.058
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
