Description
Brand - ZEN
Item Number - BK3016 ZEN
Category - Needle Roller Bearing
Inner Ring Dimension (d) mm - 30
Outer Ring Dimension (D) mm - 37
Width (B) mm - 16
Bt (mm) - 13.3
Dynamic Load Rating (N) - 17200
Static Load Rating (N) - 29000
Limiting Speed - 8400
Weight (kg) - 0.038
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100

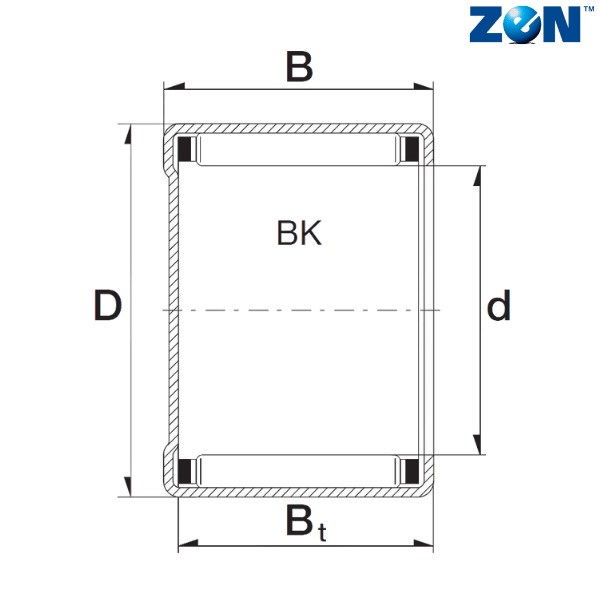

** Images are for representation purposes only
