Description
Brand - ZEN
Item Number - BK2526 ZEN
Category - Needle Roller Bearing

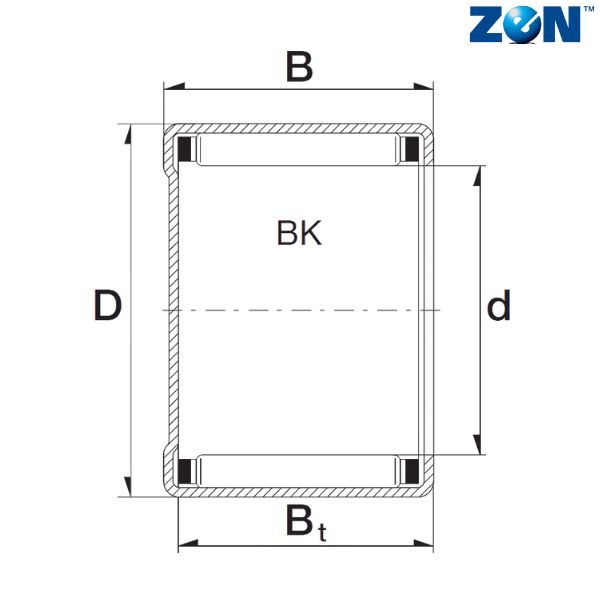

Inner Ring Dimension (d) mm - 25
Outer Ring Dimension (D) mm - 32
Width (B) mm - 26
Bt (mm) - 23.3
Dynamic Load Rating (N) - 25500
Static Load Rating (N) - 45000
Limiting Speed - 9800
Weight (kg) - 0.048
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
