Description
Brand - ZEN
Item Number - BK2216 ZEN
Category - Needle Roller Bearing

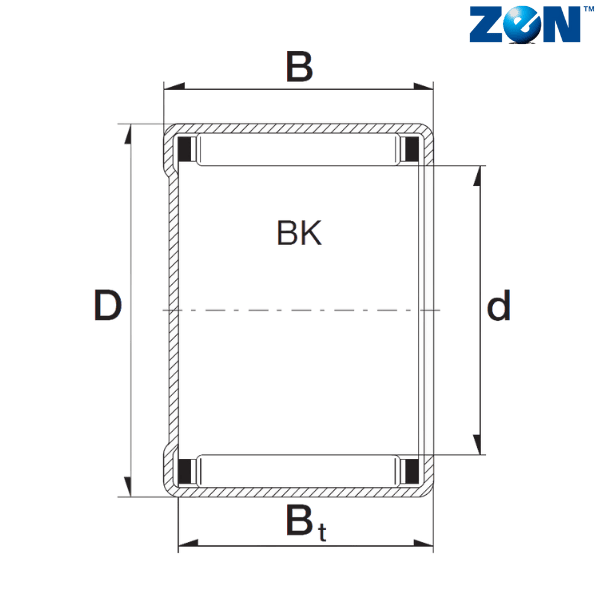

Inner Ring Dimension (d) mm - 22
Outer Ring Dimension (D) mm - 28
Width (B) mm - 16
Bt (mm) - 13.3
Dynamic Load Rating (N) - 13400
Static Load Rating (N) - 22100
Limiting Speed - 11200
Weight (kg) - 0.024
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
