Description
Brand - ZEN
Item Number - BK1816 ZEN
Category - Needle Roller Bearing

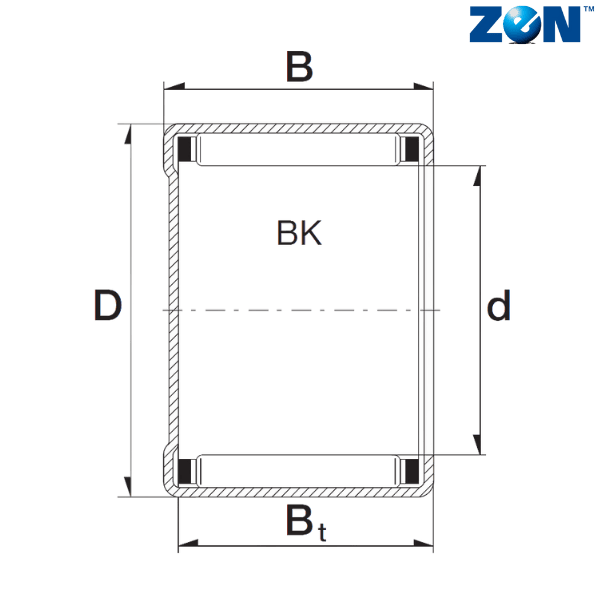

Inner Ring Dimension (d) mm - 18
Outer Ring Dimension (D) mm - 24
Width (B) mm - 16
Bt (mm) - 13.3
Dynamic Load Rating (N) - 11600
Static Load Rating (N) - 17300
Limiting Speed - 13300
Weight (kg) - 0.02
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
