Description
Brand - NADELLA
Item Number - BK1712 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

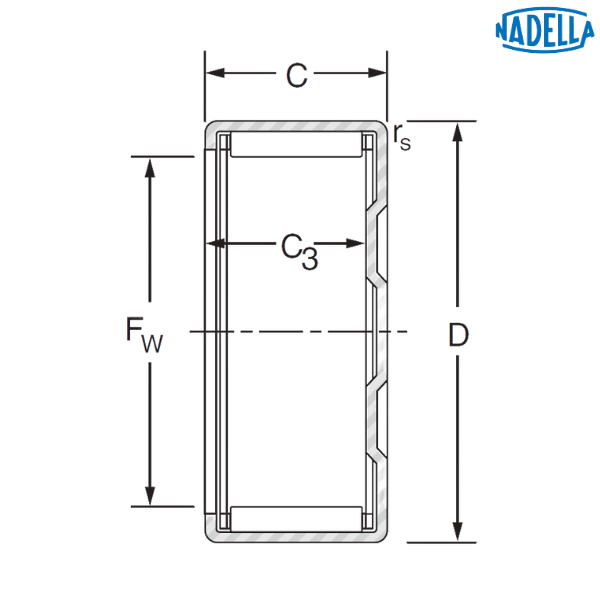

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Outer Dimeter (D) - 23 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 17 mm
Minimum Width (C3) - 9.3 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 8.12 kN
Static Load Rating (C0) - 10.4 kN
Speed Limit with Grease - 13000 rpm
Speed Limit with Oil - 20000 rpm
Weight - 0.018 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK1712 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 17 mm
Outer Dimeter (D) - 23 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 17 mm
Minimum Width (C3) - 9.3 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 8.12 kN
Static Load Rating (C0) - 10.4 kN
Speed Limit with Grease - 13000 rpm
Speed Limit with Oil - 20000 rpm
Weight - 0.018 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
