Description
Brand - ZEN
Item Number - BK1612 ZEN
Category - Needle Roller Bearing

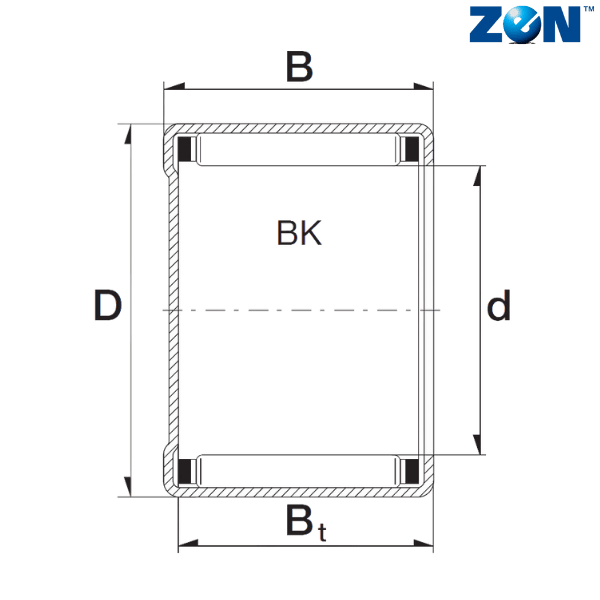

Inner Ring Dimension (d) mm - 16
Outer Ring Dimension (D) mm - 22
Width (B) mm - 12
Bt (mm) - 9.3
Dynamic Load Rating (N) - 7600
Static Load Rating (N) - 9700
Limiting Speed - 14700
Weight (kg) - 0.014
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
