Description
Brand - NADELLA
Item Number - BK1414RS NADELLA
Category - Caged Needle Bush with Seal

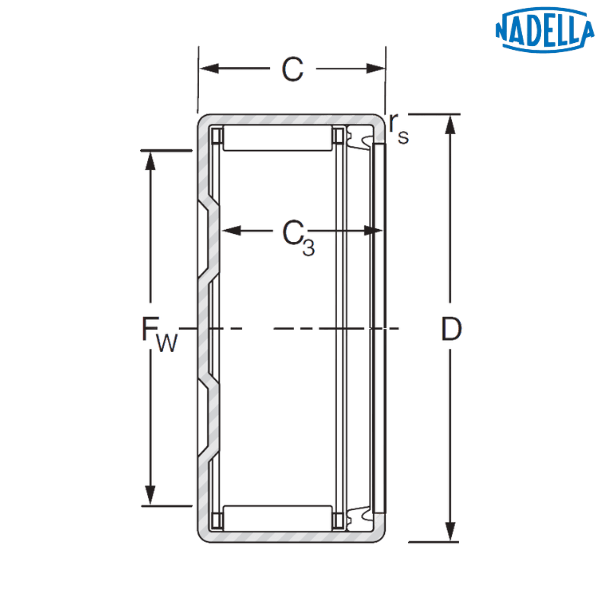

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 14 mm
Diameter of the Inner Raceway (Fw) - 14 mm
Outer Diameter (D) - 20 mm
Width (C) - 14 mm
Minimum Width (C3) - 11.6
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 7.17 kN
Static Load Rating (C0) - 8.41 kN
Speed Limit with Grease - 14000 rpm
Weight - 0.014 kg
Description of Suffixes and Prefixes :
BK - Caged Needle Bush, Closed End
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
Item Number - BK1414RS NADELLA
Category - Caged Needle Bush with Seal
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 14 mm
Diameter of the Inner Raceway (Fw) - 14 mm
Outer Diameter (D) - 20 mm
Width (C) - 14 mm
Minimum Width (C3) - 11.6
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 7.17 kN
Static Load Rating (C0) - 8.41 kN
Speed Limit with Grease - 14000 rpm
Weight - 0.014 kg
Description of Suffixes and Prefixes :
BK - Caged Needle Bush, Closed End
RS - Seal on One Side
♦ ♦ Images are for representation purposes only
