Description
Brand - ZEN
Item Number - BK1015 ZEN
Category - Needle Roller Bearing

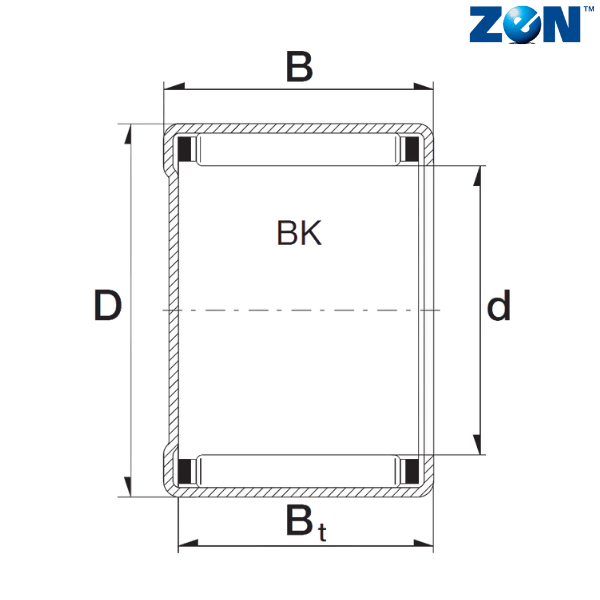

Inner Ring Dimension (d) mm - 10
Outer Ring Dimension (D) mm - 14
Width (B) mm - 15
Bt (mm) - 13.4
Dynamic Load Rating (N) - 6800
Static Load Rating (N) - 8800
Limiting Speed - 23300
Weight (kg) - 0.0062
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
