Description
Brand - NADELLA
Item Number - BK1012 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

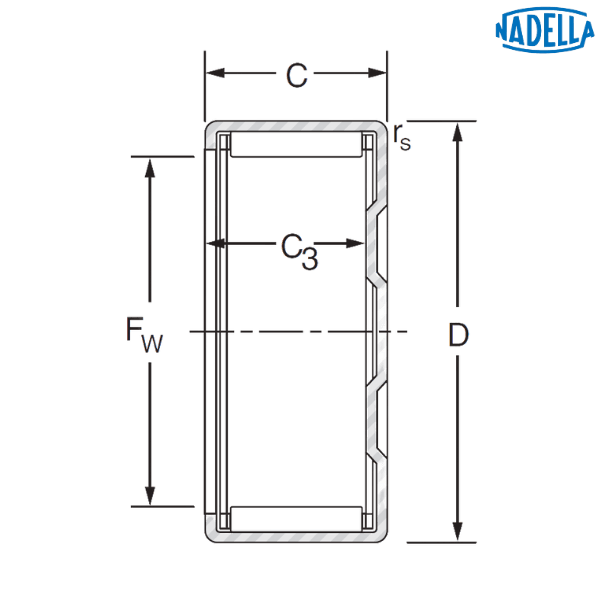

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 10 mm
Outer Dimeter (D) - 14 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 10 mm
Minimum Width (C3) - 10.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 5.9 kN
Static Load Rating (C0) - 7.23 kN
Speed Limit with Grease - 19000 rpm
Speed Limit with Oil - 29000 rpm
Weight - 0.006 kg
Compatible Internal Ring - JR7x10x12
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK1012 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 10 mm
Outer Dimeter (D) - 14 mm
Width (C) - 12 mm
Diameter of the Inner Raceway (Fw) - 10 mm
Minimum Width (C3) - 10.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 5.9 kN
Static Load Rating (C0) - 7.23 kN
Speed Limit with Grease - 19000 rpm
Speed Limit with Oil - 29000 rpm
Weight - 0.006 kg
Compatible Internal Ring - JR7x10x12
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
