Description
Brand - ZEN
Item Number - BK0709 ZEN
Category - Needle Roller Bearing

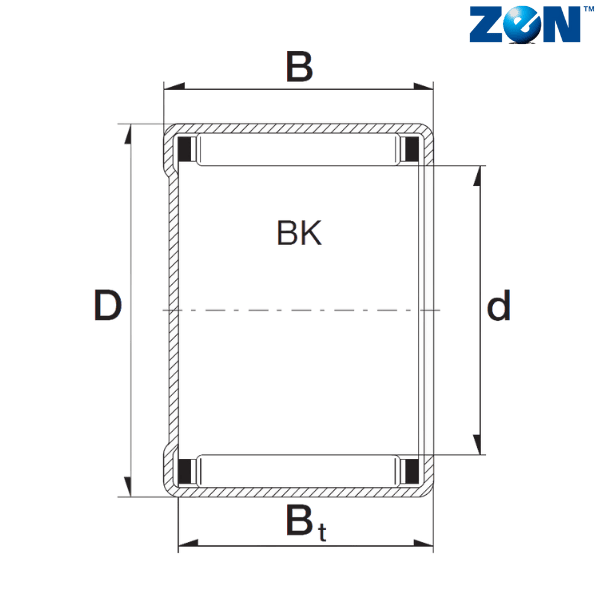

Inner Ring Dimension (d) mm - 7
Outer Ring Dimension (D) mm - 11
Width (B) mm - 9
Bt (mm) - 7.4
Dynamic Load Rating (N) - 3100
Static Load Rating (N) - 2950
Limiting Speed - 31000
Weight (kg) - 0.0029
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100
** Images are for representation purposes only
