Description
Brand - NADELLA
Item Number - BK0709 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

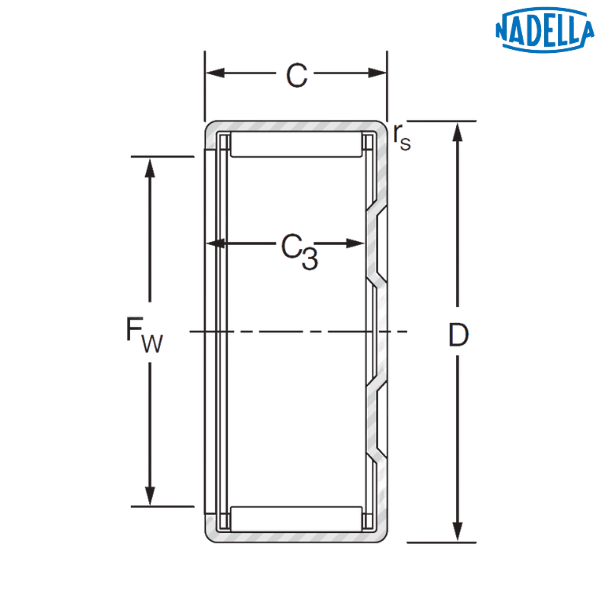

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 7 mm
Outer Dimeter (D) - 11 mm
Width (C) - 9 mm
Diameter of the Inner Raceway (Fw) - 7 mm
Minimum Width (C3) - 7.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 3.24 kN
Static Load Rating (C0) - 3.1 kN
Speed Limit with Grease - 21000 rpm
Speed Limit with Oil - 32000 rpm
Weight - 0.003 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK0709 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 7 mm
Outer Dimeter (D) - 11 mm
Width (C) - 9 mm
Diameter of the Inner Raceway (Fw) - 7 mm
Minimum Width (C3) - 7.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 3.24 kN
Static Load Rating (C0) - 3.1 kN
Speed Limit with Grease - 21000 rpm
Speed Limit with Oil - 32000 rpm
Weight - 0.003 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
