Description
Brand - ZEN
Item Number - BK0509 ZEN
Category - Needle Roller Bearing
Inner Ring Dimension (d) mm - 5
Outer Ring Dimension (D) mm - 9
Width (B) mm - 9
Dynamic Load Rating (N) - 2400
Static Load Rating (N) - 1990
Limiting Speed - 38000
Weight (kg) - 0.002
Outer Ring Material - ST14 (Nr. 1.0338)
Inner Ring Material - ST14 (Nr. 1.0338)
Ball Material - AISI52100

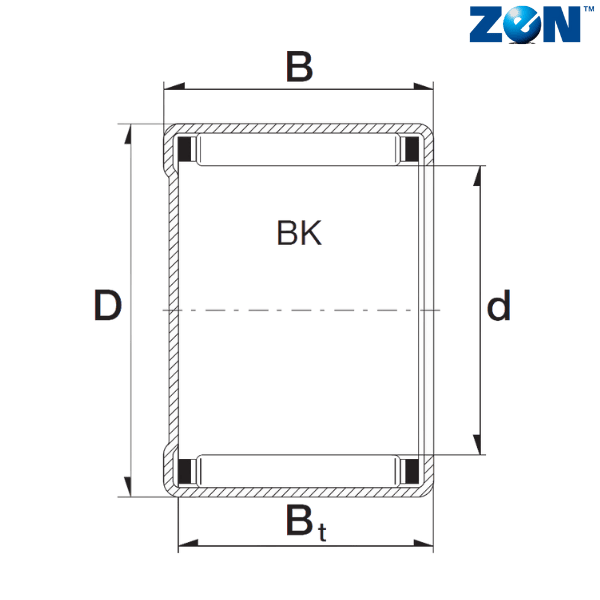

** Images are for representation purposes only
